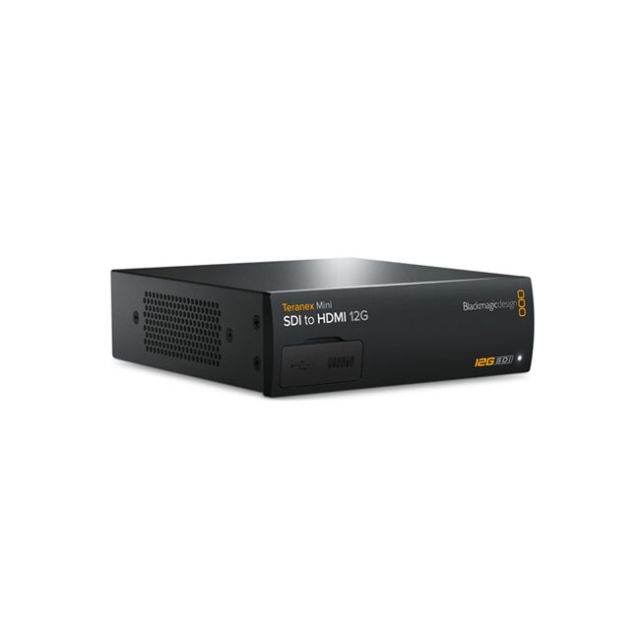

Blackmagic Design Teranex Mini Converter - SDI to HDMI 12G

by Blackmagic Design MFG# BMD-CONVNTRM/AA/SDIH
$545.00

Blackmagic Design Teranex Mini Converter - SDI to HDMI 12G

Convert from 12G-SDI to HDMI. Supports all video formats including SD, HD, 6G and 12G-SDI rates and includes down converter when working with Ultra HD as the HDMI monitor will select the best format it can support. De-embed audio to balanced analog or AES/EBU formats and timecode output. Perfect for using HDMI televisions as SDI broadcast monitors and for connecting to video projectors.

Connections

SDI Video Input

1 x 12G-SDI SD/HD/2K/4K auto switching.

SDI Video Output

1 x 12G-SDI loop output.

HDMI

1 x HDMI 2.0 type A connector with support for 2160p60.

Analog Audio Output

2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Timecode output.

AES/EBU Audio Output

4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode output.

Multi Rate Support

Automatic switching between SD/HD/2K and 4K.

Updates and Configuration

USB or Ethernet.

Re-Clocking

Yes


Teranex Mini - SDI to HDMI 12G

Standards




SD Format Support


525/29.97 NTSC, 625/25 PAL.


HD Format Support


1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.


2K Format Support


2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25.


4K Format Support


3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60.



SDI Compliance


SMPTE 292M, SMPTE 259M,SMPTE 296M, SMPTE 372M,SMPTE 424M-B, SMPTE 425M.


SDI Video Rates


SDI video connections are switchable between standard definition, high definition level B 3G-SDI, 6G-SDI and 12G-SDI.


SDI Video Sampling


4:2:2 and 4:4:4


SDI Audio Sampling


Television standard sample rate of 48 kHz and 24-bit.


SDI Color Precision


4:2:2 and 4:4:4


SDI Color Space


YUV and RGB


SDI Auto Switching


Automatically detects SD, HD or 12G-SDI.



HDMI Format Support


525/29.97 NTSC, 625/25 PAL, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60


HDMI Color Space


REC 601, REC 709


HDMI Color Precision


YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.


Software




Software Control


Mac OS Xâ„¢ and Windowsâ„¢ software upgrade via USB or Ethernet.



Internal Software Upgrade


Via included updater application.


Setting Control




Basic Settings Control


Mini Switches, USB and Ethernet via free software utility.



Optional Front Panel Control


Front mounted Smart Panel with LCD, rotary knob and six settings buttons.


Power Requirements




Power Supply


1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.



Power Over Ethernet


Can be powered via 48V DC using PoE (power over ethernet).



Power Consumption


15 Watts


Operational Voltage Range


90 - 240V AC


Physical Specifications


Teranex Mini - SDI to HDMI 12G

Environmental Specifications




Operating Temperature


0°to 40°C (32° to 104°F)



Storage Temperature


-20°to 60°C (-4° to 140°F)



Relative Humidity


0% to 90% non-condensing


What's Included



Teranex Mini - SDI to HDMI 12G


Software SD Card


Warranty



3 year Limited Manufacturer’s Warranty.
