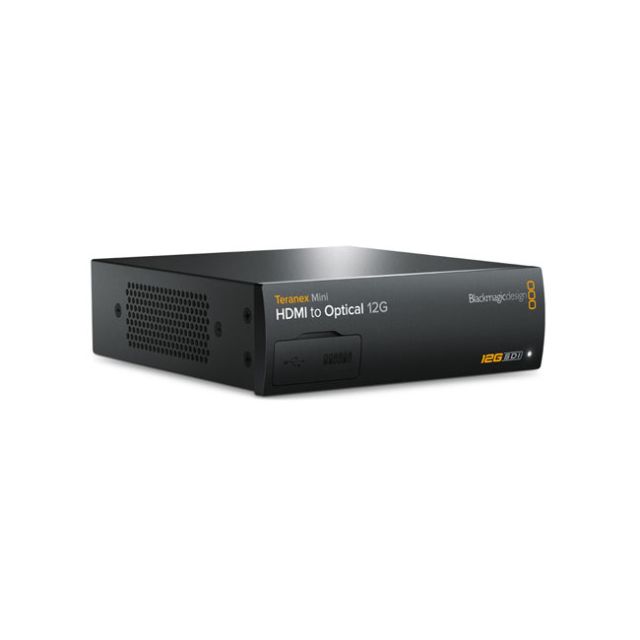

Blackmagic Design Teranex Mini - HDMI to Optical 12G

1 x HDMI 2.0 type A connector with support for 2160p60.

Optical Fiber Connection

LC connector, 1310 nanometer wavelength, single mode.

Optical Fiber Video Output

Automatically matches the SD, HD and 12G-SDI HDMI video input.

SDI Video Output

Automatically matches the SD, HD and 12G-SDI HDMI video input.

Analog Audio Input

2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.

AES/EBU Audio Input

4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode input.

Multi Rate Support

Automatic switching between SD/HD/2K and 4K.

Updates and Configuration

USB and Ethernet.

Re-Clocking

Yes

SD Format Support

525/29.97 NTSC, 625/25 PAL.

HD Format Support

1280 x 720p50, 1280 x 720p59.94,1280 x 720p60, 1920 x 1080i50,1920 x 1080i59.94, 1920 x 1080i60,1920 x 1080PsF23.98,1920 x 1080PsF24, 1920 x 1080p23.98,1920 x 1080p24, 1920 x 1080p25,1920 x 1080p29.97, 1920 x 1080p30,1920 x 1080p50, 1920 x 1080p59.94,1920 x 1080p60.

2K Format Support

2048 x 1080PsF23.98,2048 x 1080PsF24, 2048 x 1080PsF25,2048 x 1080p23.98, 2048 x 1080p24,2048 x 1080p25.

4K Format Support

3840 x 2160p23.98, 3840 x 2160p24,3840 x 2160p25, 3840 x 2160p29.97,3840 x 2160p30, 3840 x 2160p50,3840 x 2160p59.94, 3840 x 2160p60,4096 x 2160p23.98, 4096 x 2160p24,4096 x 2160p25, 4096 x 2160p29.97,4096 x 2160p30, 4096 x 2160p50,4096 x 2160p59.94, 4096 x 2160p60.

SDI Compliance

SMPTE 292M, SMPTE 259M,SMPTE 296M, SMPTE 372M,SMPTE 424M-B, SMPTE 425M,SMPTE 297M for Optical Fiber SDI.

SDI Video Rates

SDI video connections are switchable between standard definition, high definition level B 3G-SDI, 6G-SDI and 12G-SDI.

SDI Video Sampling

4:2:2 and 4:4:4.

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24-bit.

SDI Color Precision

YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.

SDI Color Space

REC 601, REC 709

HDMI Format Support

525/29.97 NTSC, 625/25 PAL,1280 x 720p50, 1280 x 720p59.94,1280 x 720p60, 1920 x 1080i50,1920 x 1080i59.94, 1920 x 1080i60,1920 x 1080p23.98, 1920 x 1080p24,1920 x 1080p25, 1920 x 1080p29.97,1920 x 1080p30, 1920 x 1080p50,1920 x 1080p59.94, 1920 x 1080p60,2048 x 1080p23.98, 2048 x 1080p24,2048 x 1080p25, 3840 x 2160p23.98,3840 x 2160p24, 3840 x 2160p25,3840 x 2160p29.97, 3840 x 2160p30,3840 x 2160p50, 3840 x 2160p59.94,3840 x 2160p60, 4096 x 2160p23.98,4096 x 2160p24, 4096 x 2160p25,4096 x 2160p29.97, 4096 x 2160p30,4096 x 2160p50, 4096 x 2160p59.94,4096 x 2160p60.

HDMI Color Space

REC 601, REC 709

HDMI Color Precision

YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.

Copy Protection

HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Software Control

Mac OS Xâ„¢ and Windowsâ„¢ software upgrade via USB or Ethernet.

Internal Software Upgrade

Via included updater application.

Basic Settings Control

Mini Switches, USB and Ethernet via free software utility.

Optional Front Panel Control

Front mounted Smart Panel with LCD, rotary knob and six settings buttons.

Power Supply

1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.

Power Over Ethernet

Can be powered via 48V DC using PoE (power over ethernet).

Power Consumption

15 Watts

Operational Voltage Range

90 - 240V AC

Operating Temperature

0°to 40°C (32° to 104°F)

Storage Temperature

-20° to 60°C (-4° to 140°F)

Relative Humidity

0% to 90% non-condensing
