Blackmagic Design Teranex Mini - Quad SDI to 12G-SDI

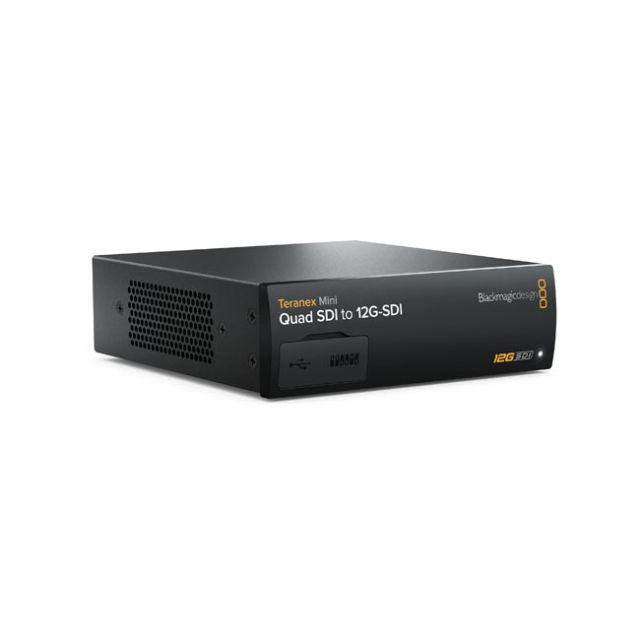

Teranex Mini - Quad SDI to 12G-SDI

Convert Quad Link SDI to 12G-SDI so you can connect Quad Link Ultra HD equipment to the latest 12G-SDI Ultra HD equipment. Allows equipment that uses four BNC cables to be connected using a single 12G-SDI BNC cable for connecting to the latest routers, switchers, projectors and more! Supports both Level A and Level B 3G-SDI equipment.

Connections:

•
  SDI Video Input


  • 4 x 12G-SDI SD/HD/2K/4K auto switching






• SDI Video Output


  • 1 x 12G-SDI output






• Multi Rate Support


  • Automatic switching between SD/HD/2K and 4K






• Updates and Configuration


  • USB or Ethernet






• Re-Clocking


  • Yes




Standards:

• SD Format Support


  • 525/29.97 NTSC, 625/25 PAL


  • HD Format Support


  •


    • 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.


    • 2K Format Support


      • 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25.


      • Ultra HD Format Support


        • 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60,


        • 4K Format Support


          • 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30.


          • SDI Compliance


            • SMPTE 259M, 292M, 296M, 372M, 425M, ST-2081 & ST-2082


            • SDI Video Rates


              • SDI video connections are switchable between standard definition, high definitionlevel A and level B 3G-SDI, 6G-SDI and 12G-SDI.


              • SDI Video Sampling


                • 4:2:2 and 4:4:4


                • SDI Audio Sampling


                  • Television standard sample rate of 48 kHz and 24-bit.


                  • SDI Color Space


                    • YUV & RGB































Software

• Software Control


  • Mac OS Xâ„¢ and Windowsâ„¢ software upgrade via USB and Ethernet.


  • Internal Software Upgrade


    • Via included updater application







Settings Control

• Basic Settings Control


  • Mini Switches, USB and Ethernet via free software utility.


  • Optional Front Panel Control


    • Front mounted Smart Panel with LCD, rotary knob and six settings buttons.buttons.







Power Requirements

• Power Supply


  • 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.


  • Power Over Ethernet


    • Can be powered via 48V DC using PoE+ (power over ethernet).


    • Power Consumption


      • 14 Watts


      • Operational Voltage Range


        • 90 - 240V AC





















Environmental Specifications

• Operating Temperature


  • 0°to 40°C (32° to 104°F)


  • Storage Temperature


    • -20°to 60°C (-4° to 140°F)


    • Relative Humidity


      • 0% to 90% non-condensing










What's Included:

• Teranex Mini - Quad SDI to 12G-SDI



• Software SD Card

Warranty

• 3 year Limited Manufacturer’s Warranty.





Standards:



·         SD Format Support



o   525/29.97 NTSC, 625/25 PAL



·         HD Format Support



o   720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.



·         2K Format Support



o   1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25.



·         Ultra HD Format Support



o   2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60,



·         4K Format Support



o   2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30.



·         SDI Compliance



o   SMPTE 259M, 292M, 296M, 372M, 425M, ST-2081 & ST-2082



·         SDI Video Rates



o   SDI video connections are switchable between standard definition, high definitionlevel A and level B 3G-SDI, 6G-SDI and 12G-SDI.



·         SDI Video Sampling



o   4:2:2 and 4:4:4



·         SDI Audio Sampling



o   Television standard sample rate of 48 kHz and 24-bit.



·         SDI Color Space



o   YUV & RGB
