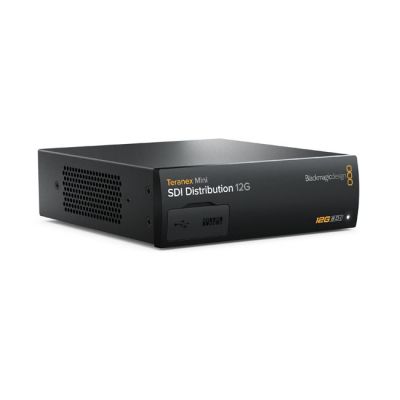

Blackmagic Design Teranex Mini - SDI Distribution 12G

by Blackmagic Design MFG# BMD-CONVNTRM/EA/DA
$545.00

Teranex Mini - SDI Distribution 12G

Distribute a single SDI video input to up to eight SDI outputs. Features the latest multi rate 12G-SDI connections with full SDI re-clocking allowing the converter to automatically switch between all SD, HD and Ultra HD formats up to 2160p60. Perfect for distributing a single SDI signal to multiple devices such as monitors, switchers and encoders.

Connections:

    • SDI Video Input

        • 1 x 12G-SDI SD/HD/2K/4K auto switching.


    • SDI Video Output

        • 8 x 12G-SDI automatically matches the SD/HD/2K/4K 12G-SDI input



    • Multi Rate Support

        • Automatic switching between SD/HD/2K and 4K



    • Updates and Configuration

        • USB or Ethernet


    • Re-Clocking

        • Yes

Standards:

    • SD Format Support

        • 525/29.97 NTSC, 625/25 PAL

        • HD Format Support

            • 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.

            • 2K Format Support

                • 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25,

                • Ultra HD Format Support

                    • 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60.

                    • 4K Format Support

                        • 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30.

                        • SDI Compliance

                            • SMPTE 259M, 292M, 296M, 372M, 425M, ST 2081 & ST 2082

                            • SDI Video Rates

                                • SDI video connections are switchable between standard definition, high definition level B 3G-SDI, 6G-SDI and 12G-SDI.

                                • SDI Video Sampling

                                    • 4:2:2 and 4:4:4

                                    • SDI Audio Sampling

                                        • Television standard sample rate of 48 kHz and 24-bit.

                                        • SDI Color Space

                                            • YUV & RGB






















Software



    • Software Control

        • Mac OS Xâ„¢ and Windowsâ„¢ software upgrade via USB and Ethernet.

        • Internal Software Upgrade

            • Via included updater application






Settings Control



    • Basic Settings Control

        • Mini Switches, USB and Ethernet via free software utility.

        • Optional Front Panel Control

            • Front mounted Smart Panel with LCD, rotary knob and six settings buttons.






Power Requirements



    • Power Supply

        • 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.

        • Power Over Ethernet

            • Can be powered via 48V DC using PoE+ (power over ethernet).

            • Power Consumption

                • 18 Watts

                • Operational Voltage Range

                    • 90 - 240V AC


















Environmental Specifications



    • Operating Temperature

        • 0°to 40°C (32° to 104°F)

        • Storage Temperature

            • -20°to 60°C (-4° to 140°F)

            • Relative Humidity

                • 0% to 90% non-condensing








What's Included:



    • Teranex Mini - S DI Distribution 12G



    • Software SD Card



Warranty



    • 3 year Limited Manufacturer’s Warranty.
