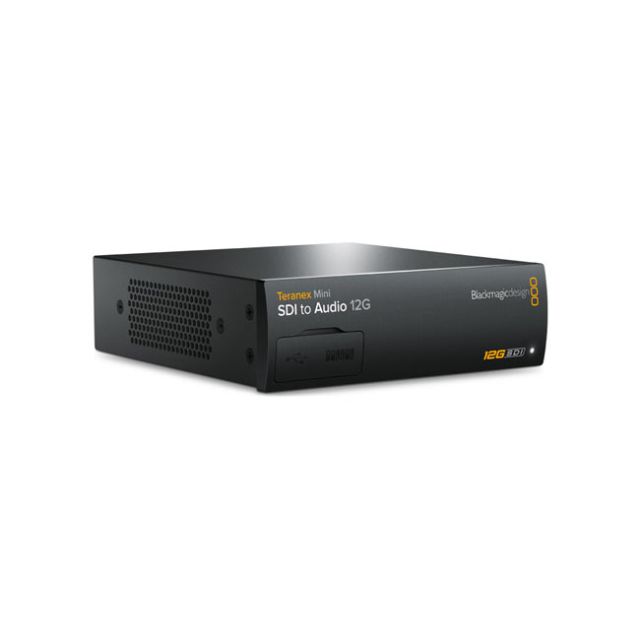

Teranex Mini - SDI to Audio 12G
_x000D_ _x000D_De-embed audio from any SD, HD or Ultra HD SDI video connection and output 2 channels of analog audio to balanced XLR, optical or HiFi RCA, or output up to 4 channels of AES/EBU digital audio. Perfect for converting and outputting SDI audio to a massive range of audio equipment such as audio mixers, iPods, analog broadcast decks, audio monitors and more.
_x000D_ _x000D_Connections
_x000D_ _x000D_ _x000D_SDI Video Input
_x000D_1 x 12G-SDI SD/HD/2K/4K auto switching.
_x000D_SDI Video Output
_x000D_1 x 12G-SDI loop output.
_x000D_AES/EBU Audio Output
_x000D_4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode output.
_x000D_ _x000D_ _x000D_Analog Audio Output
_x000D_2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode output.
_x000D_Optical Audio Output
_x000D_S/PDIF Signal with TOSLINK Connector.
_x000D_ _x000D_ _x000D_Multi Rate Support
_x000D_Automatic switching between SD/HD/2K and 4K.
_x000D_Updates and Configuration
_x000D_USB or Ethernet.
_x000D_Re-Clocking
_x000D_Yes
_x000D_ _x000D_ _x000D_Â
_x000D_
Â
_x000D_Standards
_x000D_Â
_x000D__x000D_
_x000D_
SD Format Support
_x000D__x000D_
525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL
_x000D__x000D_
HD Format Support
_x000D__x000D_
1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.
_x000D__x000D_
2K Format Support
_x000D__x000D_
2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25.
_x000D_ _x000D__x000D_
_x000D_
4K Format Support
_x000D__x000D_
3840 x 2160p23.98, 3840 x 2160p24,3840 x 2160p25, 3840 x 2160p29.97,3840 x 2160p30, 3840 x 2160p50,3840 x 2160p59.94, 3840 x 2160p60,4096 x 2160p23.98, 4096 x 2160p24,4096 x 2160p25, 4096 x 2160p29.97,4096 x 2160p30, 4096 x 2160p50,4096 x 2160p59.94, 4096 x 2160p60
_x000D__x000D_
SDI Compliance
_x000D__x000D_
SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE424M-B, SMPTE 425M, ITU-R BT.656, ITU-R BT.601, SMPTE ST-2036
_x000D__x000D_
SDI Video Rates
_x000D__x000D_
SDI video connections are auto switching between standard definition SDI, high definition level B 3G-SDI, 6G-SDI, and 12G-SDI.
_x000D_ _x000D__x000D_
_x000D_
SDI Auto Switching
_x000D__x000D_
Automatically selects between SD, HD, 3G, 6G and 12G-SDI.
_x000D__x000D_
SDI Video Sampling
_x000D__x000D_
4:2:2, 4:4:4
_x000D__x000D_
SDI Audio Sampling
_x000D__x000D_
Television standard sample rate of 48kHz and 24-bit.
_x000D__x000D_
SDI Color Precision
_x000D__x000D_
YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
_x000D__x000D_
SDI Color Space
_x000D__x000D_
REC 601, REC 709
_x000D_ _x000D_ _x000D_Â
_x000D_Software
_x000D_Â
_x000D__x000D_
_x000D_
Software Control
_x000D__x000D_
Mac OS Xâ„¢ and Windowsâ„¢ software upgrade via USB and Ethernet.
_x000D_ _x000D__x000D_
_x000D_
Internal Software Upgrade
_x000D__x000D_
Via included updater application.
_x000D_ _x000D__x000D_ Â _x000D_ _x000D_
Â
_x000D_Settings Control
_x000D_Â
_x000D__x000D_
_x000D_
Basic Settings Control
_x000D__x000D_
Mini Switches, USB and Ethernet via free software utility
_x000D_ _x000D__x000D_
_x000D_
Optional Front Panel Control
_x000D__x000D_
Front mounted Smart Panel with LCD, rotary knob and six settings buttons
_x000D_ _x000D__x000D_ Â _x000D_ _x000D_
Â
_x000D_Power Requirements
_x000D_Â
_x000D__x000D_
_x000D_
Power Supply
_x000D__x000D_
1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.
_x000D__x000D_
Power Over Ethernet
_x000D__x000D_
Can be powered via 48V DC using PoE (power over ethernet).
_x000D_ _x000D__x000D_
_x000D_
Power Consumption
_x000D__x000D_
15 Watts
_x000D__x000D_
Operational Voltage Range
_x000D__x000D_
90 - 240V AC
_x000D_ _x000D_ _x000D_Â
_x000D_Physical Specifications
_x000D_Â
_x000D_
Â
_x000D_Environmental Specifications
_x000D_Â
_x000D__x000D_
_x000D_
Operating Temperature
_x000D__x000D_
0° to 40° C (32° to 104° F)
_x000D_ _x000D__x000D_
_x000D_
Storage Temperature
_x000D__x000D_
-20°to 60°C (-4° to 140°F)
_x000D_ _x000D__x000D_
_x000D_
Relative Humidity
_x000D__x000D_
0% to 90% non-condensing
_x000D_ _x000D_ _x000D_Â
_x000D_What's Included
_x000D_Â
_x000D__x000D_
Teranex Mini - SDI to Audio 12G
_x000D__x000D_
Software SD Card
_x000D_ _x000D_Â
_x000D_Warranty
_x000D_Â
_x000D__x000D_
3 year Limited Manufacturer’s Warranty.
