FieldCast 2Core SM Hybrid Chassis Connector

by FieldCast MFG# FC-c9090

FieldCast 2Core SM Hybrid Chassis Connector

2Core SM Hybrid Chassis Connector

*** SM= Single Mode 9/125 Fiber Core

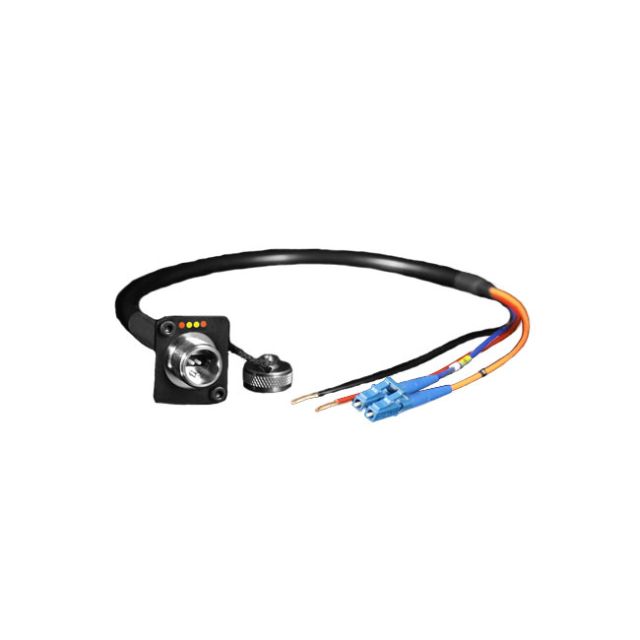

2Core connector for mounting in a chassis or 19 inch panel, with standard D-size form factor, that connects to your 2Core main cable. At the back it sports a 0.5 meter fanout with LC Duplex connector.


    • two cores of protected fiber
    • copper cable for power
    • single mode 9/125
    • color coded (two yellow rings for 2Core single mode and two red rings for power)
    • female chassis connector on one side
    • Copper cable plus LC Duplex back outlet on other side
    • Outlet cable length 50 cm.
    • product code: c9090


• highest quality Rosenberger OSI female chassis connector

• connects FieldCast cable to equipment with standard LC fiber connectivity

• standard 0.50m back outlet, other lengths on request

• standard LC connectors on outlet, PC polished, other connectors on request

• 2Core with two LC connectors on outlet, 4Core with four LC connectors on outlet
