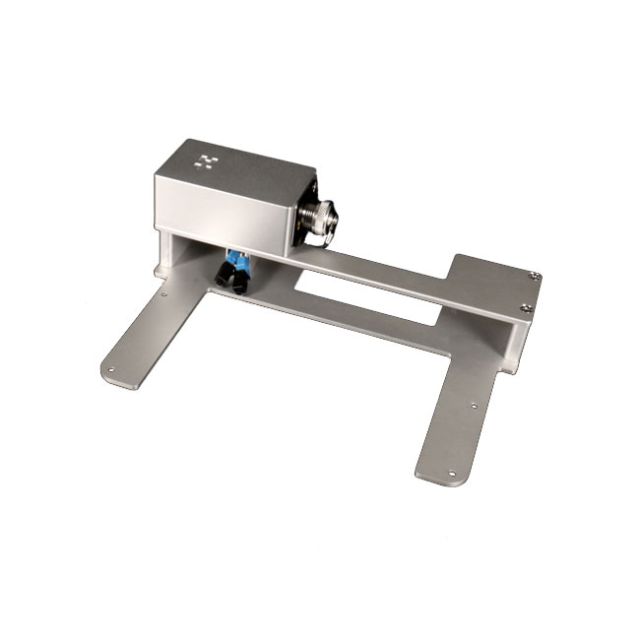

FieldCast Adapter One (Adapter from FieldCast 2Core SM to ATEM Camera Converter)
FieldCast Adapter One (Adapter from FieldCast 2Core SM to ATEM Camera Converter)
_x000D_Go into the field with Camera Converter
_x000D_With Adapter One you can connect the FieldCast™ Cable straight to Blackmagic Design’s famous ATEM Camera Converter™, fast and easy.
_x000D_Adapter One completely and effectively protects the vulnerable fiber optic LC connections to the SFP of Camera Converterâ„¢. Now you can use your Camera Converterâ„¢ in any environment, and without worries!
_x000D_Adapter One has smallest form factor possible, and the all aluminum design makes it light as a feather.
_x000D_Robust fiber optic connectivity made easy
_x000D_Get the max out of your Camera Converterâ„¢ by using the FieldCastâ„¢ fiber optic system. With FieldCastâ„¢ Adapter One you can tap into the world of easy to use fiber optic connectivity and cover any distance between your OB Van and your live camera in the most professional way.
_x000D_Adapter One has smallest form factor possible, and the all aluminum design makes it light as a feather.
_x000D_Features
_x000D_The adapter features a FieldCast 2Core Chassis Connector, so you can connect the FieldCast 2Core SM (single mode) Main Cable to it, fast and easy.
_x000D_The design of the adapter is such that all functionality of Camera Converter is unchanged. The LC Duplex I/O connection is neatly covered by the milled out aluminum protection block, but all other connectors of the unit are accessible as before, and you can connect your camera and all other gear as you did before.
_x000D_It’s easy to connect FieldCast Adapter One to Camera Converter. Just remove the four screws at the back of the converter, put Adapter One in place and screw it all together again, using the four screws that are part of the package.
_x000D_The resulting assembly of converter and adapter feels and behaves as one complete unit, and even the belt clip at the back, with its inserts for connecting to pods, rigs or arms, can be used like before, as if the adapter was not there at all!
_x000D_With Fieldcast Adapter One your ATEM Camera Converter has become sturdy all the way.
_x000D_Specifications
_x000D_- _x000D_
- rugged milled out aluminum case, glass blasted and anodized _x000D_
- _x000D_
- _x000D_
- color coded and FieldCast 2Core SM Chassis Connector with D-size flange _x000D_
- _x000D_
- _x000D_
- custom FieldCast ultra short bend insensitive patching cable inside _x000D_
- _x000D_
- _x000D_
- single mode 9/125 fiber optic technology _x000D_
- _x000D_
- _x000D_
- spare D-size cutout with blind plate, for updating to Adapter One Plus _x000D_
- _x000D_
- _x000D_
- countersunk M3 20mm. mounting screws for connecting to Camera Converter _x000D_
- _x000D_
- _x000D_
- weight 350 grams _x000D_
- _x000D_
- _x000D_
- instruction manual and hex key for removing Camera Converter screws included _x000D_
- _x000D_
- _x000D_
- product code: br001 _x000D_
- _x000D_
