FieldCast Adapter One Plus (Adapter from FieldCast 2Core SM to ATEM Camera Converter with 4 pin XLR Connector)
FieldCast Adapter One Plus (Adapter from FieldCast 2Core SM to ATEM Camera Converter with 4 pin XLR Connector)
_x000D_Connect your battery to Camera Converter
_x000D_Adapter One Plus is identical to Adapter One, except for the extra four pin XLR chassis connector; now you can tap into an external battery and get a more robust and safe connection to your power supply.Â
_x000D_Adapter One Plus connects the FieldCast™ Cable straight to Blackmagic Design’s famous ATEM Camera Converter™, and completely and effectively protects the vulnerable fiber optic LC connections to the SFP of Camera Converter™.
_x000D_Robust fiber optic connectivity made easy
_x000D_Adapter One Plus brings all advantages of Adapter One, and adds a four pin XLR chassis connector for tapping in your power supply or battery. Now you can go into the field with an extra battery pack to feed your Camera Converter or recharge its battery with power supplies that use standard XLR connectors! If you want to be sure that your Camera Converter has a tight, standard, low cost, available connection to external battery or power supply, go for Adapter One Plus. And if you want to keep your costs down maximally, substitute the laptop connector on your Camera Converter power supply for a female four pin XLR connector, and you can continue to use it.Â
_x000D_Features
_x000D_The adapter features a FieldCast 2Core Chassis Connector, so you can connect the FieldCast 2Core SM (single mode) Main Cable to Blackmagic Design ATEM Camera Converter, fast and easy.Â
_x000D_Also features a Neutrik four pin XLR chassis connector, so you can connect an external battery pack to Camera Converter by simply using a standard adapter cable with XLR four pin female cable connector.Â
_x000D_Taps into the power connector of Camera Converter using a 90 degree power plug. This does not change the functionality of the unit.Â

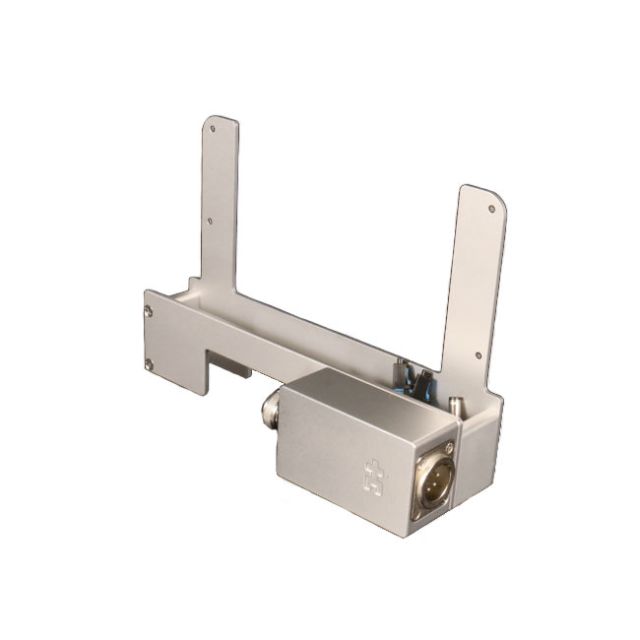

_x000D_Robust all aluminium solution, built around a milled out block completely covering and protecting the vulnerable LC connections to the SFP of Camera Converter.
_x000D_Mounts to the back of Camera Converter using the four taps of its housing; no customizing, no drilling, no glueing whatsoever.Â
_x000D_Specifications
_x000D_- _x000D_
- rugged milled out aluminum case, glass blasted and anodized _x000D_
- _x000D_
- _x000D_
- color coded and FieldCast 2Core SM Chassis Connector with D-size flange _x000D_
- _x000D_
- _x000D_
- custom FieldCast ultra short bend insensitive patching cable inside _x000D_
- _x000D_
- _x000D_
- standard single mode 9/125 fiber optic technology _x000D_
- _x000D_
- _x000D_
- standard PC polished LC Duplex connections to SFP _x000D_
- _x000D_
- _x000D_
- Neutrik NC4MD-LX 4-pin XLR chassis connector for external power supply _x000D_
- _x000D_
- _x000D_
- 90 degree 5.5mm. OD x 2.5mm. ID power plug for connecting to unit _x000D_
- _x000D_
- _x000D_
- countersunk M3 20mm. mounting screws for connection to Camera Converter _x000D_
- _x000D_
- _x000D_
- dimensions: 200(L) x 133 (B) x 62 (H) mm. _x000D_
- _x000D_
- _x000D_
- weight 360 grams _x000D_
- _x000D_
- _x000D_
- product code: br005 _x000D_
