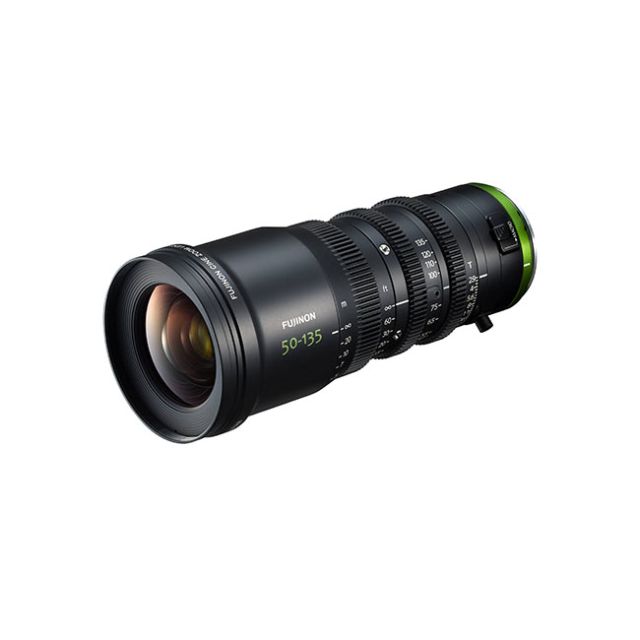

Fujinon Micro 4/3 50-135mm T2.9 CINE Lens

Fujinon Micro 4/3 50-135mm T2.9 CINE Lens

The Dawn of New Era

“FUJINON MK50-135mm T2.9” achieves high optical performance and low distortion with T2.9 speed across the entire zoom range. With MK18-55mm, it covers standard 18 to 135mm focal length for cinema production. Super 35mm/APS-C sensor compatibility and E-mount dedicated design have led to an ultra-compact &“less than 1kg” lightweight body, and excellent cost performance. It suppresses “focus shift and optical axis shift while zooming” and “Lens breathing”. Also, it features three fully manual lens rings for focus, zoom, and iris with 0.8M gear pitch and a 200° focus rotation angle for sophisticated operability.

Features

• Outstanding optical performance and low distortion with T2.9 speed across the entire zoom range
• Covering the standard 18 to 135mm focal length for cinema production with MK18-55mm and MK50-135mm
• Ultra-compact &“less than 1kg” lightweight design thanks to Super 35mm/APS-C sensor compatibility with dedicated E-mount design
• Fully manual lens rings for focus, zoom, and iris with 0.8M gear pitch
• 200° focus rotation angle for accurate focusing
• Seamless iris to avoid vibrations and noise that you get with clicking mechanism
• Resolves issues of interchangeable lenses for still digital cameras such as “focus shift and optical axis shift while zooming” and “lens breathing”
• 85mm front diameter, 82mm filter diameter, and position of 0.8M are standardized between the two models
• Features macro function
• Features flange focal length adjustment function



Specifications

Focal Length: 50-135mm

Zoom raito: 2.7x

F-No.: F2.75

T-no.: T2.9

Lens Mount: E Mount

M.O.D from Sensor Plane: 1.2m / 3ft 11in (with macro function 0.85m / 2ft 9in)

Angular field of view 24.84mm x 13.97mm*2:

50mm : 27.9° x 15.9°
135mm : 10.5° x5.9°

Focus Rotation: 200°

Zoom Rotation: 90°

Iris Rotation: 59°

Iris Blades: 9

Macro function: Yes

Front Diameter: 85mm

Filter Diameter: 82mm

Length (approx.): φ85 x 206mm / 8.1"

Weight（approx.): 980g / 2.2lbs.

• *2 Aspect ratio 1:1.78Gear pitch 0.8mm
