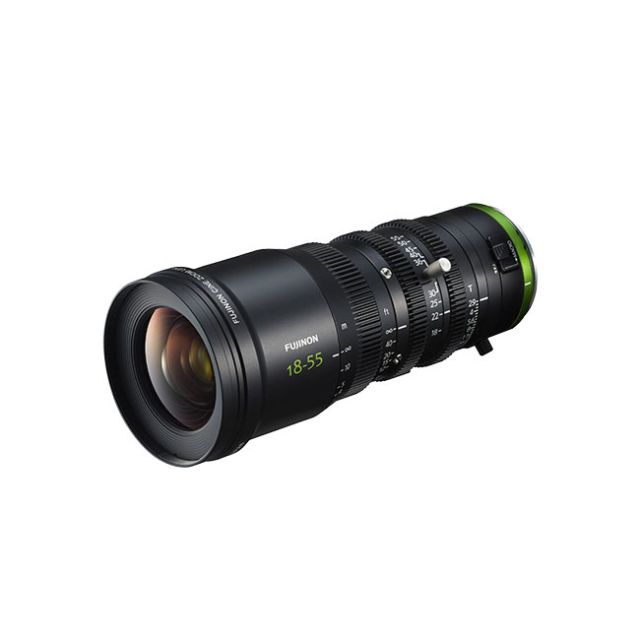

Fujinon Micro 4/3 18-55mm T2.9 CINE Lens

Fujinon Micro 4/3 18-55mm T2.9 CINE Lens

_x000D_

The Dawn of New Era

_x000D_

“FUJINON MK18-55mm T2.9” achieves high optical performance and low distortion with T2.9 speed across the entire zoom range. With MK50-135mm, it covers standard 18 to 135mm focal length for cinema production. Super 35mm / APS-C sensor compatibility and E-mount dedicated design have led to an ultra-compact &“less than 1kg” lightweight body, and excellent cost performance. It suppresses “focus shift and optical axis shift while zooming” and “Lens breathing”. Also, it features three fully manual lens rings for focus, zoom, and iris with 0.8M gear pitch and a 200° focus rotation angle for sophisticated operability.

_x000D_

Features

_x000D_

_x000D_
• Outstanding optical performance and low distortion with T2.9 speed across the entire zoom range
_x000D_
• Covering the standard 18 to 135mm focal length for cinema production with MK18-55mm and MK50-135mm
_x000D_
• Ultra-compact &“less than 1kg” lightweight design thanks to Super 35mm/APS-C sensor compatibility with dedicated E-mount design
_x000D_
• Fully manual lens rings for focus, zoom, and iris with 0.8M gear pitch
_x000D_
• 200° focus rotation angle for accurate focusing
_x000D_
• Seamless iris to avoid vibrations and noise that you get with clicking mechanism
_x000D_
• Resolves issues of interchangeable lenses for still digital cameras such as “focus shift and optical axis shift while zooming” and “lens breathing”
_x000D_
• 85mm front diameter, 82mm filter diameter, and position of 0.8M are standardized between the two models
_x000D_
• Features macro function
_x000D_
• Features flange focal length adjustment function
_x000D_

_x000D_



_x000D_

Specifications

_x000D_

Focal Length: 18-55mm

_x000D_

Zoom Raito: 3.0x

_x000D_

F-No.: F2.75

_x000D_

T-No.: T2.9

_x000D_

Lens Mount: E Mount

_x000D_

M.O.D from Sensor Plane: 0.85m / 2ft 9in (with macro function 0.38m / 1ft 2.9in)

_x000D_

Angular field of view 24.84mm x 13.97mm*1:

_x000D_

18mm : 69.2° x 42.4°
55mm : 25.5° x 14.5°

_x000D_

Focus Rotation: 200°

_x000D_

Zoom Rotation 90°

_x000D_

Iris Rotation: 59°

_x000D_

Iris Blades: 9

_x000D_

Macro function: Yes

_x000D_

Front Diameter: 85mm

_x000D_

Filter Diameter: 82mm

_x000D_

Length (approx.): φ85 x 206mm / 8.11"

_x000D_

Weight（approx.）:980g

_x000D_

_x000D_
• *1 Aspect ratio 1:1.78 Gear pitch 0.8mm
