IDX 4-Channel Simultaneous Quick Charger with LCD Display
IDX 4-Channel Simultaneous Quick Charger with LCD Display

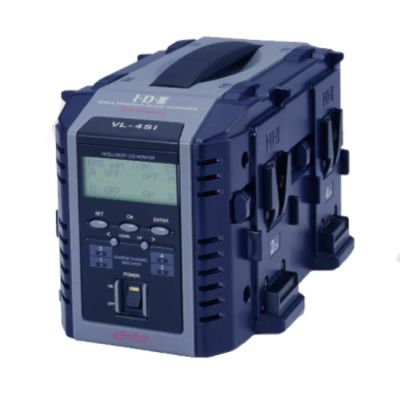

The VL-4Si is a fully simultaneous, high speed 4-channel charger. To monitor the charge status of each individual battery, an LCD display and control panel is located on the front of the unit. Together with IDX’s Battery Management System software, the VL-4Si – via PC interface – provides detailed battery data to help manage and extend the life of a customer’s battery inventory. This is ideal for network operations and rental facilities.
Â
Tech Specs
Input Voltage: |
AC 100-240V 50/60Hz |
Power Consumption: |
310VA max |
Quick Charge Current: |
Li-ion: 2.3A (4 channels), 3A (1-3 channels) Ni-CD/Ni-MH: 1.9A (1-4 channels) |
Quick Charge System: |
Li-ion: Constant current/Constant voltage Ni-CD/Ni-MH: Constant current |
Pre-Charge Current: |
360mA approx |
Operating Temperature: |
14°F ~ 104°F |
Dimensions: |
6.14(W) x 6.02(H) x 11.34(D) inches |
Weight: |
7.05 lbs approx. |
Included Accessories: |
Battery Management Software, (1) USB cable |
