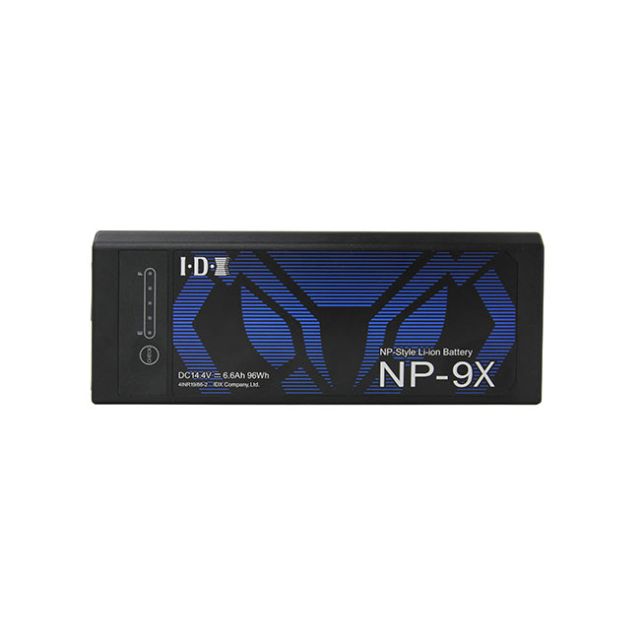

IDX 96Wh / 14.4V / 6.6Ah NP-Style Lithium Ion Battery with 2x D-Taps & 5 LED Power Indicator

by IDX MFG# IDX-NP-9X
Sold out
$223.00

IDX 96Wh / 14.4V / 6.6Ah NP-Style Lithium Ion Battery with 2x D-Taps & 5 LED Power Indicator

_x000D_

NP-9X is the successor of the NP-L7S, the industry standard NP-style battery for powering audio equipment. It now features more capacity at 96Wh, two D-Tap outputs for powering additional accessories, and also a 5 LED power indicator to display remaining capacity in 10% increments. One of the D-Tap port is a D-Tap Advanced, which can also be used to charge the battery with the IDX VL-DT1 D-Tap charger. NP-9X is still compatible with all current accessories and chargers like the JL-2PLUS.

_x000D_



_x000D_

Tech Specs

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
_x000D_

Capacity:

_x000D_ 		_x000D_

96Wh (14.4V/ 6.6Ah)

_x000D_
_x000D_

Max Output Voltage:

_x000D_ 		_x000D_

16.8V DC

_x000D_
_x000D_

Nominal Voltage:

_x000D_ 		_x000D_

14.4V DC

_x000D_
_x000D_

Max Discharge Current:

_x000D_ 		_x000D_

4.6A‡ ( total of main connector and d-taps )

_x000D_
_x000D_

End Voltage:

_x000D_ 		_x000D_

11V

_x000D_
_x000D_

D-Tap:

_x000D_ 		_x000D_

50W each

_x000D_
_x000D_

D-Tap Advanced:

_x000D_ 		_x000D_

Compatible only with IDX VL-DT1 charger

_x000D_
_x000D_

Battery Protection:

_x000D_ 		_x000D_

Over charge, Over discharge, Over current, Thermal protection

_x000D_
_x000D_

Ambient Temperature:

_x000D_ 		_x000D_

To charge: 32°F ~ 104°F (50°F ~ 86°F recommended)

_x000D_

To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended)

_x000D_

To store: -4°F ~ 104°F

_x000D_
_x000D_

Dimensions:

_x000D_ 		_x000D_

7.26(W) x 2.80(H) x 0.97(D) inches

_x000D_
_x000D_

Weight:

_x000D_ 		_x000D_

1.15 lbs approx.

_x000D_
_x000D_

Included Accessories:

_x000D_ 		_x000D_

Terminal cover

_x000D_
_x000D_



_x000D_ 		_x000D_

‡ may vary depending on the operating temperature
