IDX DC Cable with X-Tap for 7.4V Accessories

IDX DC Cable with X-Tap for 7.4V Accessories

_x000D_

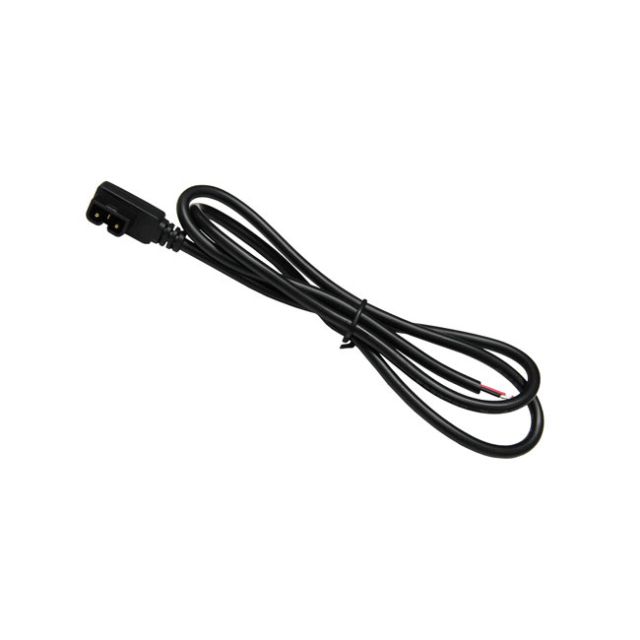

The C-XTAP2 is a DC cable utilizing an IDX proprietary X-Tap, the new standard connector for powering 7.4V accessories from the SSL-JVC75, SL-VBD64, SL-VBD96, SL-F50, SL-F70, and future IDX power products. With the open lead design, the C-XTAP2 is capable of powering virtually all 7.4V accessories. Simply solder your desired connector to the positive and negative leads. The “T” Terminal is placed for future use.

_x000D_

* X-Tap is different from D-Tap (7V vs 12V)

_x000D_



_x000D_

Tech Specs:

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_

_x000D_ Cable Assembly: _x000D_	_x000D_ Input: X-Tap _x000D_ Output: Sheathed cable with 3 leads,(+) Red, (T) White (for future applications), (–) Black _x000D_
_x000D_ DC Output: _x000D_	_x000D_ 8.4V DC /3.5A (+/-) _x000D_ 5V DC /100mA (T) _x000D_
_x000D_ Operating Temperature: _x000D_	_x000D_ -4°F ~ 122°F _x000D_
_x000D_ Dimensions: _x000D_	_x000D_ 2.64(W) x 4.17(H) x 1.38(D) inches _x000D_
_x000D_ Weight: _x000D_	_x000D_ 1.5 oz approx. _x000D_
