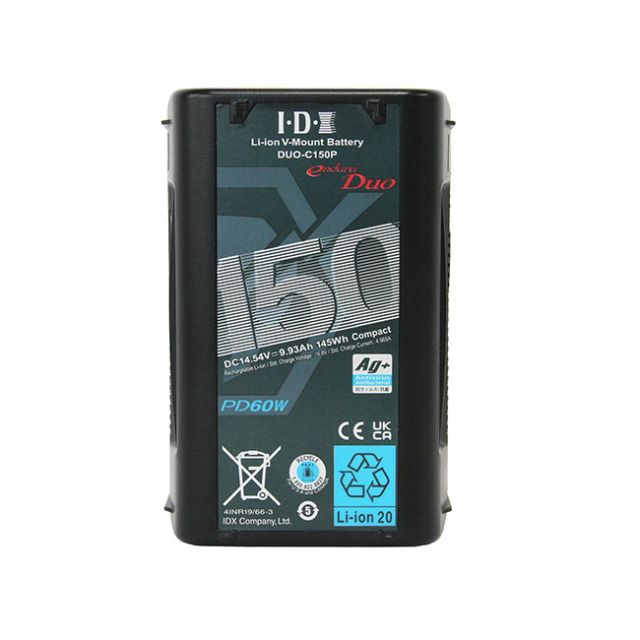

IDX Li-ion High Load V-Mount Battery with 2x D-Taps & USB-C PD 145Wh Battery Pack
IDX Li-ion High Load V-Mount Battery with 2x D-Taps & USB-C PD 145Wh Battery Pack
The DUO-C150P is the successor of the popular DUO-C150 battery. Ideal compact battery solution for digital cinema cameras and camera stabilizer systems where long runtimes are required. With 145Wh capacity, the DUO-C150P meets the passenger aircraft carry-on limit and can still provide mobile power to cine-style cameras such as the ARRI ALEXA Mini and RED Weapon effortlessly for extended periods at a time. The DUO-C150P also includes two on-battery D-Taps and now features a USB-C port to power accessories as well as charge the battery. Also, V-Torch LED for use in dark environments and SMBus to display battery info via viewfinder on cameras such as ARRI and RED.
Â
Tech Specs
|
Capacity: |
145Wh (14.54V/ 9.93Ah) |
|
Max Output Voltage: |
16.8V DC |
|
Nominal Voltage: |
14.54V DC |
|
Max Discharge Current: |
14A‡ |
|
D-Tap: |
80W each |
|
USB-C PD: |
DC 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A, Max 60W |
|
End Voltage: |
11V |
|
Battery Protection: |
Over-charge, Over-discharge, Over-current, Thermal protection |
|
Ambient Temperature: |
To charge: 32°F ~ 104°F (50°F ~ 86°F recommended) To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended) To store: -4°F ~ 122°F (less than 1 month) |
|
Dimensions: |
3.82(W) x 5.75(H) x 2.32(D) inches |
|
Weight: |
1.98 lbs approx. |
|
 |
‡ may vary depending on the operating temperature |
