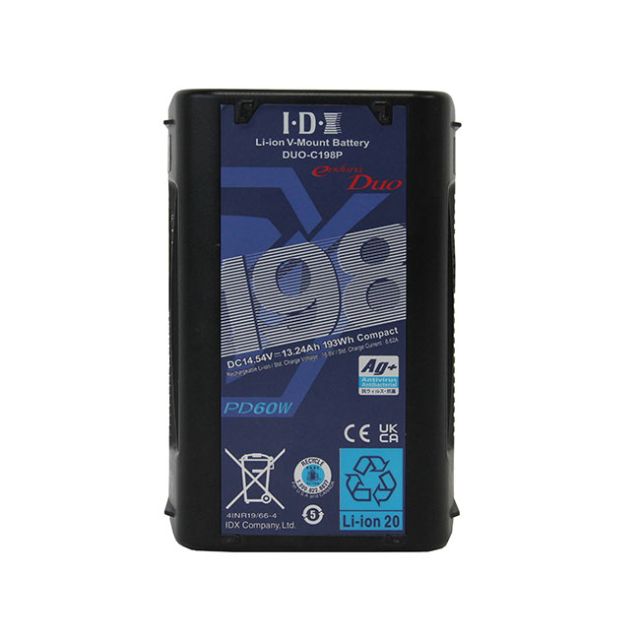

IDX Li-ion High Load V-Mount Battery with 2x D-Taps & USB-C PD 193Wh Battery Pack

IDX Li-ion High Load V-Mount Battery with 2x D-Taps & USB-C PD 193Wh Battery Pack

by IDX MFG# IDX-DUO-C198P
$399.00

IDX Li-ion High Load V-Mount Battery with 2x D-Taps & USB-C PD 193Wh Battery Pack

The DUO-C198P is the successor of the popular DUO-C198 battery. Ideal compact battery solution for digital cinema cameras and camera stabilizer systems where long runtimes are required. With its ultra-robust 193Wh capacity and compact 2.4lb design, the DUO-C198P can provide mobile power to cine-style cameras such as the ARRI ALEXA Mini and RED Weapon effortlessly for extended periods at a time. The DUO-C198P also includes two built-in D-Taps and now features a USB-C port to power accessories as well as charge the battery. Also, V-Torch LED for use in dark environments and SMBus to display battery info via viewfinder on cameras such as ARRI and RED.



LED Light Run Time Test (Aputure LS C120d II)

Brightness:

100%

80%

70%

DUO-C198P (h:mm)

0:53

2:14

3:26



 Tech Specs

Capacity:

193Wh (14.54V/ 13.24Ah)

Max Output Voltage:

16.8V DC

Nominal Voltage:

14.54V DC

Max Discharge Current:

14A‡

D-Tap:

80W each

USB:

DC 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A, Max 60W

End Voltage:

11V

Battery Protection:

Over-charge, Over-discharge, Over-current, Thermal protection

Ambient Temperature:

To charge: 32°F ~ 104°F (50°F ~ 86°F recommended)

To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended)

To store: -4°F ~ 122°F (less than 1 month)

Dimensions:

3.82(W) x 5.75(H) x 2.32(D) inches

Weight:

2.40 lbs approx.



‡ may vary depending on the operating temperature
