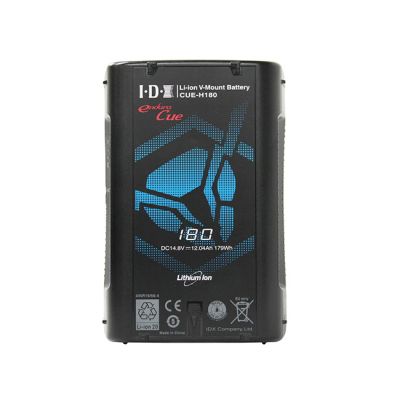

IDX Li-ion High Load V-Mount Battery with D-Tap 179Wh Battery Pack

by IDX MFG# IDX-CUE-H180
$229.00

IDX Li-ion High Load V-Mount Battery with D-Tap 179Wh Battery Pack

The CUE-H180 V-Mount battery answers to the power demands of digital cinematography and broadcast cameras where high current loads of 12A/155W are standard. The CUE-H180 provides a robust 155Wh capacity with the ability to comfortably handle 12A/155W loads, as well as a single built-in D-Tap output capable of taking a 80W load for powering ancillary accessories.

*Not compatible with D-Tap charging



Tech Specs

Capacity:

179Wh (14.8V/ 12.04Ah)

Max Output Voltage:

16.8V DC

Nominal Voltage:

14.8V DC

Max Discharge Current:

12A‡

D-Tap:

80W each

End Voltage:

11.2V

Battery Protection:

Over charge, Over discharge, Over current

Ambient Temperature:

To charge: 32°F ~ 104°F (50°F ~ 86°F recommended)

To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended)

To store: -4°F ~ 113°F (less than 1 month)

Dimensions:

3.82(W) x 5.75(H) x 2.32(D) inches

Weight:

2.31 lbs approx.



‡ may vary depending on the operating temperature
