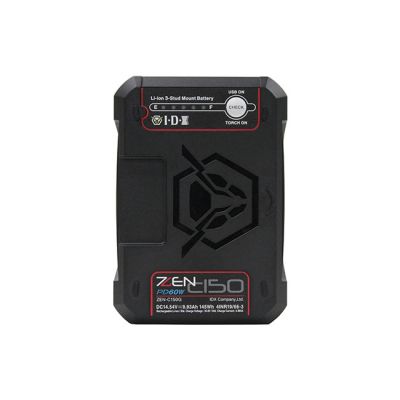

IDX Li-ion Three Stud Battery with 2x D-Taps & USB-C 145Wh Cube style Battery Pack

by IDX MFG# IDX-ZEN-C150G
$349.00

IDX Li-ion Three Stud Battery with 2x D-Taps & USB-C 145Wh Cube style Battery Pack

The ZEN-C150G Three Stud Mount battery line, the ZENITH Series. The ZEN-C150G provides a robust 145Wh capacity with the ability to handle max. draw at 15.2A/168W loads, as well as two built-in D-Tap outputs capable of taking a 80W load for powering common on-board accessories. USB-C PD (Power Delivery) port for two way power and charging when used with the new UC-PD1 compact charger. Cube style for use with cinema cameras.  An antiviral and antimicrobial body for hygienic peace of mind.



Tech Specs

Capacity:

145Wh (14.5V/ 9.9Ah)

Max Output Voltage:

16.8V DC

Nominal Voltage:

14.54V DC

Max Discharge Current:

15.2A‡

D-Tap:

80W each

USB-C PD:

Input/Output Max. 60W (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A)

End Voltage:

11V

Battery Protection:

Over charge, Over discharge, Over current

Ambient Temperature:

To charge: 32°F ~ 104°F (50°F ~ 86°F recommended)

To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended)

To store: 32°F ~ 104°F (three months)

Dimensions:

3.46(W) x 4.96(H) x 3.29(D) inches

Weight:

2.05 lbs approx.



‡ may vary depending on the operating temperature
