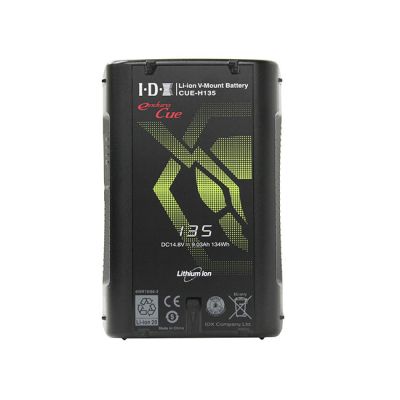

IDX Li-ion V-Mount Battery with D-Tap 134Wh Battery Pack

by IDX MFG# IDX-CUE-H135
$189.00

IDX Li-ion V-Mount Battery with D-Tap 134Wh Battery Pack

The CUE-H135 V-Mount battery answers to the power demands of digital cinematography and broadcast cameras where high current loads of 10.5A/135W are needed. The CUE-H135 provides a robust 134Wh capacity with the ability to comfortably handle 10.5A/135W loads, as well as a single built-in D-Tap output capable of taking a 80W load for powering ancillary accessories.

*Not compatible with D-Tap charging



Tech Specs

Capacity:

134Wh (14.8V/ 9.03Ah)

Max Output Voltage:

16.8V DC

Nominal Voltage:

14.8V DC

Max Discharge Current:

10.5A‡

D-Tap:

80W each

End Voltage:

11.2V

Battery Protection:

Over charge, Over discharge, Over current

Ambient Temperature:

To charge: 32°F ~ 104°F (50°F ~ 86°F recommended)

To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended)

To store: -4°F ~ 113°F (less than 1 month)

Dimensions:

3.82(W) x 5.75(H) x 2.32(D) inches

Weight:

1.92 lbs approx.



‡ may vary depending on the operating temperature
