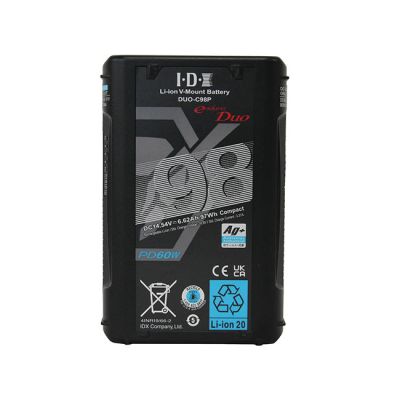

IDX Slim Li-ion High Load V-Mount Battery with 2x D-Taps & USB-C PD 97Wh Battery Pack

IDX Slim Li-ion High Load V-Mount Battery with 2x D-Taps & USB-C PD 97Wh Battery Pack

by IDX MFG# IDX-DUO-C98P
$249.00

IDX Slim Li-ion High Load V-Mount Battery with 2x D-Taps & USB-C PD 97Wh Battery Pack

The DUO-C98P is the successor of the popular DUO-C98 battery. At 97Wh, it is IATA friendly(<100Wh) and perfect for handheld gimbal and aerial setups. The DUO-C98P comes equipped with two built-in D-Taps and now features a built-in USB-C port to power accessories as well as charge the battery. Also, V-Torch LED for use in dark environments and SMBus to display battery info via viewfinder on cameras such as ARRI and RED.



Tech Specs

Capacity:

97Wh (14.54V/ 6.62Ah)

Max Output Voltage:

16.8V DC

Nominal Voltage:

14.54V DC

Max Discharge Current:

10.5A‡

D-Tap:

80W each

USB-C PD:

DC 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A, Max 60W

End Voltage:

11V

Battery Protection:

Over-charge, Over-discharge, Over-current, Thermal protection

Ambient Temperature:

To charge: 32°F ~ 104°F (50°F ~ 86°F recommended)

To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended)

To store: -4°F ~ 122°F (less than 1 month)

Dimensions:

3.82(W) x 5.75(H) x 1.54(D) inches

Weight:

1.41 lbs approx.



‡ may vary depending on the operating temperature
