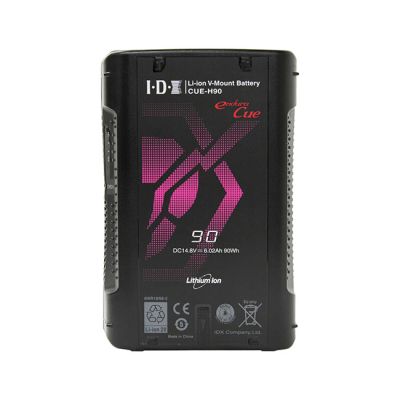

IDX Slim Li-ion V-Mount Battery with D-Tap 90Wh Battery Pack

IDX Slim Li-ion V-Mount Battery with D-Tap 90Wh Battery Pack

by IDX MFG# IDX-CUE-H90
$149.00

IDX Slim Li-ion V-Mount Battery with D-Tap 90Wh Battery Pack

CUE-H90 is IDX’s most economical Li-ion V-Mount battery in the 90-100Wh battery class. With a capacity of 90Wh and a maximum discharge rate of 7A/85W, the CUE-H90 is ideal for small to midsize cameras. The CUE-H90 also comes equipped with a built-in D-Tap connector capable of taking a 80W load for powering accessories.

*Not compatible with D-Tap charging



Tech Specs

Capacity:

90Wh (14.8V/ 6.02Ah)

Max Output Voltage:

16.8V DC

Nominal Voltage:

14.8V DC

Max Discharge Current:

7A‡

D-Tap:

80W each

End Voltage:

11.2V

Battery Protection:

Over charge, Over discharge, Over current

Ambient Temperature:

To charge: 32°F ~ 104°F (50°F ~ 86°F recommended)

To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended)

To store: -4°F ~ 113°F (less than 1 month)

Dimensions:

3.82(W) x 5.75(H) x 1.54(D) inches

Weight:

1.34 lbs approx.



‡ may vary depending on the operating temperature
