IDX V-Mount Adapter for Sony PXW-FX9

by IDX MFG# IDX-A-DCFX9
$314.00

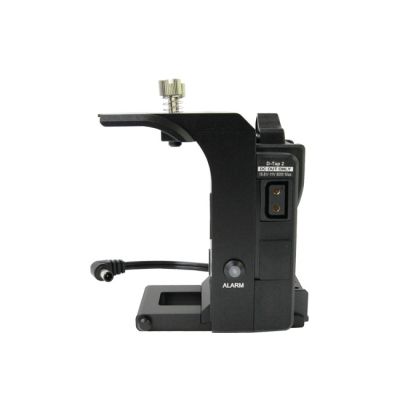

IDX V-Mount Adapter for Sony PXW-FX9

The A-DCFX9 is a V-Mount adapter specifically designed for the Sony PXW-FX9. It converts the attached battery to the camera required 19.5V and supplies power via the DC input. By using it in combination with a small battery like the Imicro series, you can build a small and lightweight system that has a sense of unity with the camera. Also equipped with 2x D-Tap and an Alarm LED to alert battery level.

Run Time with Imicro Series (FX9 on stand-by)

Battery:

Run Time (h:mm)

Imicro-98

3:00

Imicro-150

4:15



Tech Specs

Compatibility:

Sony PXW-FX9

Output Connectors:

(1) DC Plug, (2) D-Tap

DC Plug:

Output rating: 19.5V (40W max)

Outer diameter: 6.5mm

Inner diameter: 4.3mm

Pin diameter: 1.4mm

L-shaped type

D-Tap:

Battery through voltage, 80W max

Alarm LED:

Lights red when the battery level is 13.4V~11.5V

Ambient Temperature:

Discharge: -20C~40C (10C~40C recommended)

Dimensions:

2.6(W) x 4.0(H) x 3.31(D) inches

Weight:

0.88 lbs approx.
