IDX V-Mount Adapter Plate with D-Tap & 5V USB Connector

IDX V-Mount Adapter Plate with D-Tap & 5V USB Connector

_x000D_

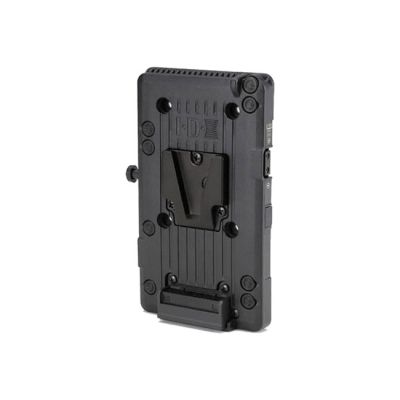

TA-PV2USB allows direct mounting of IDX ENDURA batteries and is made to power and charge the USB devices. The plate is designed to attached directly to the IDX A-CP(A) universal mounting plate, TA-CA2 series support accessories or any other mounting plates on industry standard rail systems.

_x000D_



_x000D_

Tech Specs:

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_

_x000D_ Cable Output Voltage: _x000D_	_x000D_ 12~16.8V DC _x000D_
_x000D_ USB Output Voltage: _x000D_	_x000D_ 5V _x000D_
_x000D_ D-Tap Output Voltage: _x000D_	_x000D_ 12~16.8V DC _x000D_
_x000D_ D-Tap: _x000D_	_x000D_ 50W max (each port) _x000D_
_x000D_ Dimensions: _x000D_	_x000D_ 3.25(W) x 5.59(H) x 0.47(D) inches _x000D_
_x000D_ Weight: _x000D_	_x000D_ 0.40 lbs approx. _x000D_
_x000D_ Included Accessories: _x000D_	_x000D_ (4x) M3 x 8 screws _x000D_
