Inogeni U BRIDGE 3

Inogeni U BRIDGE 3

_x000D_

The new INOGENI U-BRIDGE 3 multi-device extender for any USB 3.0 device is the solution to interoperability challenges AV installers encounter when reliable long-distance USB camera extension is required. The U-BRIDGE 3 video camera and audio extender enables SuperSpeed USB 3.0 connections up to 100 m / 330 ft over a single CAT6A cable.

_x000D_

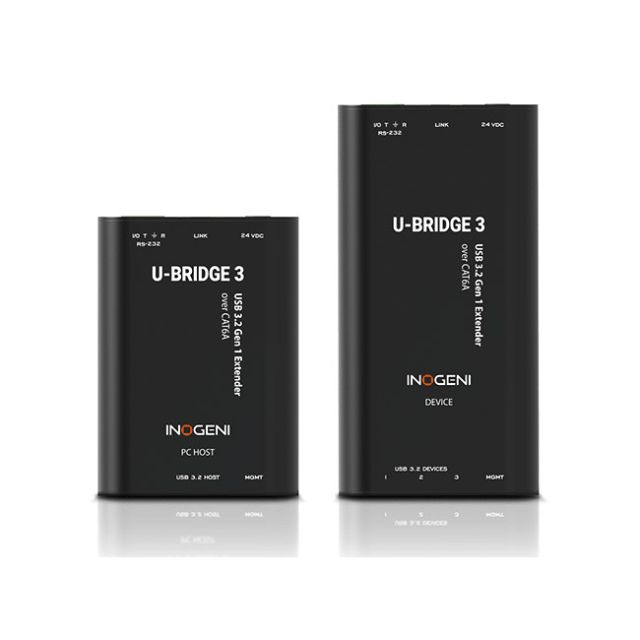

U-BRIDGE 3 USB 3.0 Multi-device extender

_x000D_

_x000D_
• USB 3.2 Gen 1 / 5Gbps Backward compatible with USB 3.1 Gen 1/3.0/2.0
_x000D_
• 4K video camera and audio extender enables SuperSpeed connections.
_x000D_
• Reliable long-distance USB camera extension maintains high-quality, uncompressed video.
_x000D_
• DEVICE ports: 2x USB-A and 1x USB-C
_x000D_
• PC HOST port: lockable USB-C connector.
_x000D_
• LINK: Up to 100 m/330 ft over a single CAT6A cable.
_x000D_
• Powered by either the PC HOST or DEVICE.
_x000D_
• RS-232 extension for VISCA or control.
_x000D_
• TAA compliant and made in Canada.
_x000D_

_x000D_



_x000D_

Ideal for USB camera extension (100 m / 330 ft) in videoconferencing rooms

_x000D_

_x000D_
• The U-BRIDGE 3 multi-device extender is fully compatible with all USB cameras, including professional-grade equipment, such as AVer, Logitech, Jabra, ClearOne, Huddly, HuddleCamHD, PTZOptics, Lumens, Marshall, and web cameras.
_x000D_

_x000D_



_x000D_

Versatile SuperSpeed USB 3.0 proven technology
U-BRIDGE 3 supports all USB 3.0/2.0 devices. It is designed for use with up to 3 devices simultaneously, such as USB cameras, whiteboards, microphones, audio devices, and any other USB device (hard drives, flash drives or keyboards).

_x000D_



_x000D_

_x000D_
• Can be powered from either the PC Host or Camera/Device end of this solution.
_x000D_
• Provides plug-and-play convenience with no software drivers required.
_x000D_
• Works with all major operating systems, including Windows, macOS, and Linux.
_x000D_
• 5-year warranty for added peace of mind.
_x000D_
• Enables device access and control of USB devices.
_x000D_

_x000D_



_x000D_

How it works

_x000D_

Extend your USB 3.0 devices to any INOGENI USB input, CODEC, or videoconferencing system.

_x000D_

The U-BRIDGE 3 offers unmatched versatility and reliability and extends up to 3 USB 3.0 connections (2 USB-A and 1 USB-C) up to 100 meters (330 feet), far beyond the standard 3-meter cable limit. Designed specifically for USB 3.0 devices and systems, the U-BRIDGE 3 accommodates a range of peripherals, including cameras, microphones, audio devices, and more. Its backward compatibility with USB 2.0 ensures seamless integration with a variety of devices. It provides 1.8A that can be shared between USB ports to enhance functionality and convenience.

_x000D_

Features

_x000D_

The U-BRIDGE 3 offers versatility and reliability for USB 3.0 extensions of up to 100 m (330 ft). U-BRIDGE 3 enables users to extend USB connections beyond the standard 3 m (10 ft) cable limit for USB 3.0 peripheral devices.

_x000D_

Designed for extension of USB 3.0 devices and systems

_x000D_

_x000D_
• DEVICE side:_x000D_
  _x000D_
  • USB 3.2 Gen 1. Backward compatible with USB 3.1 Gen 1/3.0/2.0
  _x000D_
  • 3x USB3 (5 Gbps) (2x USB-A and 1x USB-C).
  _x000D_
  • Supports cameras, whiteboards, microphones, audio devices, and any other USB devices (hard drives, flash drives or keyboards).
  _x000D_
  • Provides up to 1.8A to be shared between the 3 USB ports.
  _x000D_
  • Powered by either the DEVICE or the PC HOST module.
  _x000D_
  _x000D_
_x000D_
• PC HOST side:_x000D_
  _x000D_
  • 1 USB-C 3.2 Gen 1. Backward compatible with USB 3.1 Gen 1/3.0/2.0
  _x000D_
  • SuperSpeed USB at 5 Gbps.
  _x000D_
  • Connect to a laptop or any UC videoconference system, such as Microsoft Teams Rooms (MTR), Zoom Rooms, CODECs or Room PC from Lenovo, Poly, Crestron, Cisco, Logitech, Q-SYS or Barco.
  _x000D_
  • Powered by either the DEVICE or the PC HOST module.
  _x000D_
  _x000D_
_x000D_
• LINK_x000D_
  _x000D_
  • Up to 100 m/330 ft extension.
  _x000D_
  • Reliable HDBaseT extension over CAT6A cable.
  _x000D_
  • Use PoC (power over cable) to power up the entire system from either end.
  _x000D_
  _x000D_
_x000D_
•  INOGENI devices before or after the U-BRIDGE 3.0:_x000D_
  _x000D_
  • Mixers and switchers: SHARE2, SHARE2U, CAM300, CAM230, TOGGLE, TOGGLE ROOMS
  _x000D_
  • Converters: 4KX-PLUS, 4KXUSB3, 4K2USB3, HD2USB3 and the U-CAM
  _x000D_
  _x000D_
_x000D_
• Mass storage acceleration for USB 3.0 device bulk transfers.
_x000D_
• SuperSpeed USB®suite of features:_x000D_
  _x000D_
  • Transparent USB extension.
  _x000D_
  • True plug and play; no software drivers required.
  _x000D_
  • Works with all major operating systems:  Windows®, macOSTM, and Linux®.
  _x000D_
  _x000D_
_x000D_
• Easy to install with a mounting solution.
_x000D_
• Warranty_x000D_
  _x000D_
  • 5 years
  _x000D_
  _x000D_
_x000D_

_x000D_

Plug & Go

_x000D_

INOGENI has developed an advanced testing procedure to ensure reliability and avoid interoperability issues for the USB 3.0 extension. U-BRIDGE 3 connects a USB 3.0 camera and device or an INOGENI device to any PC or videoconferencing system, such as Microsoft Teams Rooms (MTR), Zoom Rooms, CODECs, as well as Room PCs from Lenovo, Poly, Crestron, Cisco, Logitech, MAXHUB, Q-SYS and Barco.

_x000D_

Compatible with all cameras and devices (microphones, etc.)

_x000D_

The U-BRIDGE 3 is fully compatible with all USB cameras (USB3/5 Gbps and is backward compatible with USB 2.0), including professional-grade equipment, such as AVer, Logitech, Jabra, ClearOne, Huddly, HuddleCamHD, PTZOptics, Lumens, Marshall, and web cameras.
