Lumantek ez-Distributor
Lumantek Distribution Amplifier with LCD Monitoring (12xSDI / 2xHDMI Outputs)

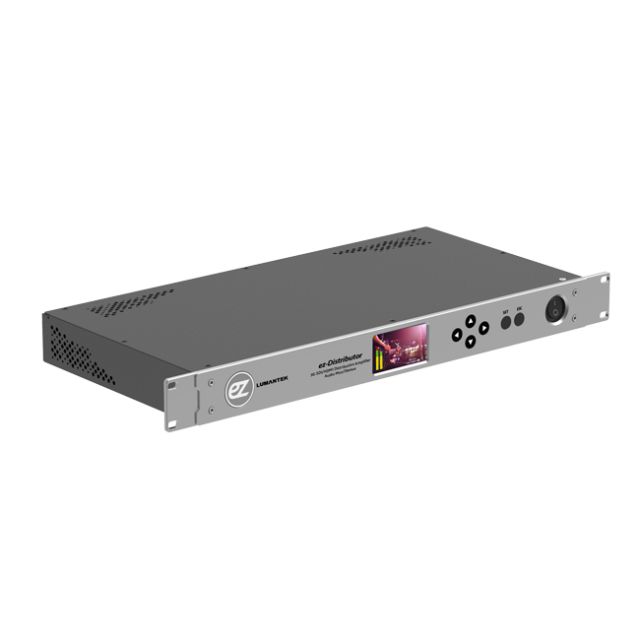

_x000D_LUMANTEK's NEW ez-Distributor is a 14 channel distributor in 1RU size. It has 1 x HDMI and 1 x 3G-SDI input, and 2 x HDMI outputs and 12 x 3G-SDI outputs. You can embed external audio and de-embed incoming video audio. With the LCD screen, it is very easy to monitor what is being played through the distributor.Â
_x000D_ _x000D_ _x000D_ _x000D_System Specifications
_x000D_Data Input
_x000D_SDI Video Input: SD/HD/3G-SDI (BNC 75Ω) x1 HDMI Video Input: SD/HD/3G (HDMI Type A) x1
_x000D_Video Formats
_x000D_- 720x480i@59.94/60
- 720x576i@50
- 1280x720p@50/59.94/60
- 1920x1080i@50/59.94/60
- 1920x1080p@23.94/24/25/29.97/30 - 1920x1080p@50/59.94/60
Audio Input
_x000D_XLR (Female) x2
_x000D_Data Output
_x000D_SDI Video Output: SD/HD/3G-SDI (BNC 75Ω) x12 HDMI Video Output: SD/HD/3G (HDMI Type A) x2
_x000D_Video Formats
_x000D_- 720x480i@59.94/60
- 720x576i@50
- 1280x720p@50/59.94/60
- 1920x1080i@50/59.94/60
- 1920x1080p@23.94/24/25/29.97/30 - 1920x1080p@50/59.94/60
Audio Output
_x000D_XLR (Male) x2
_x000D_ _x000D_ _x000D_Connections
_x000D_Update : Debug (Micro-USB)x1
_x000D_Display
_x000D_2.7 inch TFT LCD : Input Video Display(SDI or HDMI), AUDIO Level Meter Display, Input Video Resolution Display
_x000D_Electrical
_x000D_Power Input: 100~240VAC @ 50/60Hz Power Consumption: 10W(max.) Operation Temperature: 0~45 C
_x000D_ _x000D_ _x000D_ _x000D_ _x000D_NEW
_x000D_ _x000D_ _x000D_ _x000D_ _x000D_Physical
_x000D_Dimension: 44(H) X 478(W) X 226(D) Weight: 3 kg
