Lumantek HDMI/SDI Cross Converter with Audio Mux/Demux and Scaler
Lumantek HDMI/SDI Cross Converter with Audio Mux/Demux and Scaler

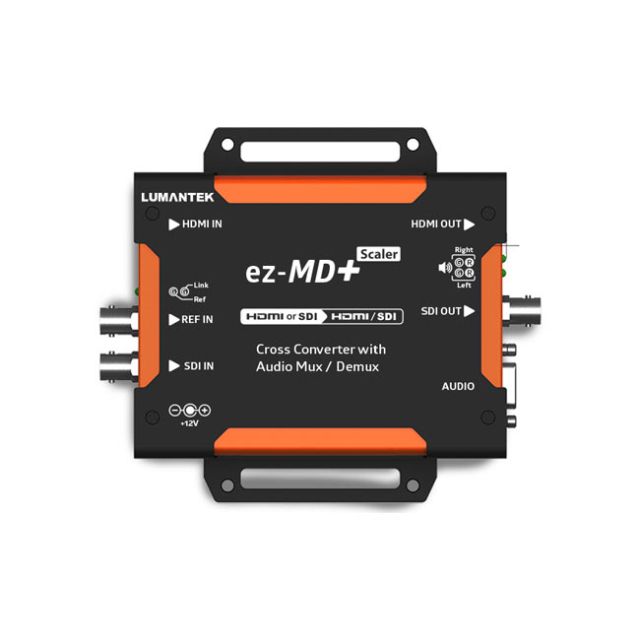

_x000D_ _x000D_LUMANTEK’s ez-MD+ is a compact cross-converter for HDMI to SDI or SDI to HDMI. The gunlock system allows synchronizing of signals to combine unpaired output signals. It supports XLR balanced audio support with audio delay controller.
_x000D_ _x000D_HDMI and SDI Cross-Converting
_x000D_ _x000D_LUMANTEK’s ez-MD+ is a compact Cross-Converter for HDMI to SDI or SDI to HDMI.
_x000D_ _x000D_Up / Down Scaling and Screen Ratio Control
_x000D_ _x000D_ez-MD+ can change the resolution of the incoming video to any resolution ranging from 480i to 1080p60. You can also change the video displaying ratio. You can choose from either 16:9 (Full) or 4:3 (Pillar Box) screen ratio to fit your requirement.
_x000D_ _x000D_Audio embedding/De-embedding with external XLR Audio
_x000D_ _x000D_9 pin serial port to XLR * 4 is complimentary.Â
_x000D_ _x000D_Audio Delay control
_x000D_ _x000D_Use the rotary switch to control the audio delay of the video source (50ms Step).
_x000D_ _x000D_Frame Synchronization
_x000D_ _x000D_There is a “Free Runningâ€, “Input Lockâ€, and “Genlock†mode to synchronize your video signal. Genlock system ensures proper synchronizing of the signals when aligning the source with external signal.
_x000D_Includes power supply
