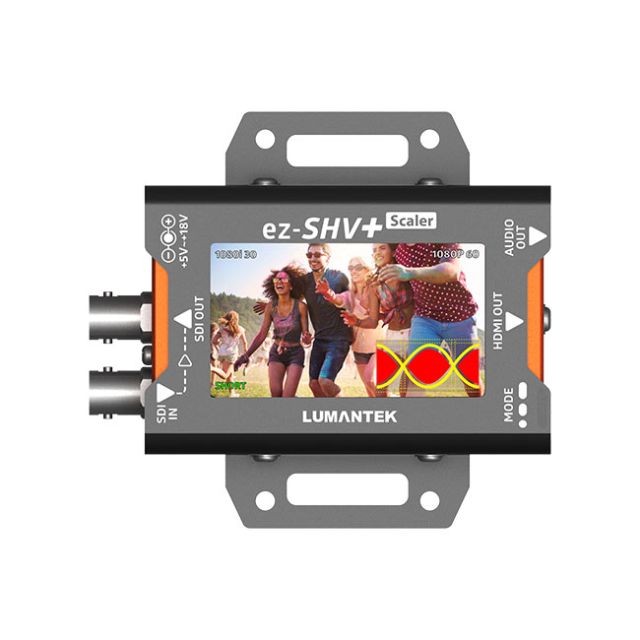

Lumantek SDI to HDMI Converter with Display and Scaler
Lumantek SDI to HDMI Converter with Display and Scaler
_x000D_ _x000D_You can easy to monitor in/output resolution, cable length and eye-pattern at once. LUMANTEK's ez-SHV+ has a SDI LOOP output. Through the LCD screen, you can monitor incoming video. By using the 'dip switch', you can select the resolution from 480i to 1080p. You can also control the LCD Brightness and screen ratio.
_x000D_ _x000D_24/7 Video Monitoring
_x000D_ _x000D_Through the 2.7 inch TFT LCD screen, you can monitoring Eye-Pattern, In/output source resolution, and Cable length at immediately.
_x000D_ _x000D_Scalable Resolution / Screen Ratio Control
_x000D_ _x000D_ez-SHV+ can change the resolution of the incoming video to any resolution ranging from 480i to 1080p60. You can also change the video displaying ratio. You can choose from either 16:9 (Full) or 4:3 (Pillar Box) screen ratio to fit your requirement. All these functions are controlled by 'dip switch'.
_x000D_ _x000D_Wall mountable
_x000D_ _x000D_ez-SHV+ has a wall mount option. You can alternative choose to set up at wall or not by changing side bracket.
_x000D_ _x000D_Detect Cable Length Automatically
_x000D_ _x000D_ez-SHV+ detects cable length automatically up to 190 m at 3G-SDI. Cable length will be shown as 'SHORT', 'MEDIUM' and 'LONG'.
_x000D_ _x000D_Low Power Consumption
_x000D_ _x000D_The Maximum power consumption of ez-SHV+ is less than 3 watts. Acceptable voltage ranges from 5v ~ 18v giving the user more flexibility while connecting electricity.
_x000D_Includes power supply
