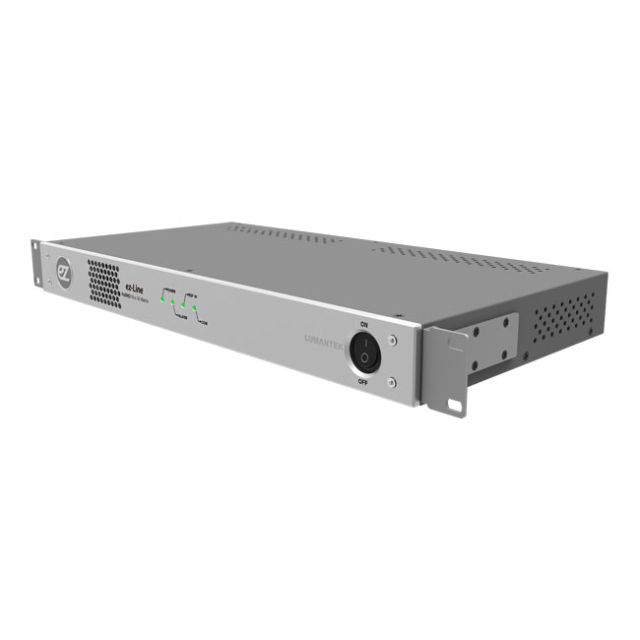

Lumantek VM16 ez-Line 16x16 Router

by Lumantek MFG# LUM-ez-Line VM16

Lumantek VM16 ez-Line 16x16 Router

ez-Line (HD-SDI 16 x 16 Router) supports the standard HD-SDI signal and can configure HD broadcast signal input/output. Through this unit user can send sharp and clear signals. In addition to this, user can utilize this device function and use variety purposes such as splitter and selector.


    • SDI Video Input: SD/HD/3G-SDI (BNC 75Ω) x16
    • Reference Input: B.B , TRI (BNC 75Ω ) x1


    • HD-SDI: SD/HD/3G-SDI (BNC 75Ω) x16Connections
    • Remote Control: RS-422 (RJ45)x1
    • Ethernet: Ethernet Support (RJ45)x1
    • Update: Debug (Micro-USB)x1


    • Power Input: 100~240VAC @ 50/60Hz
    • Power Consumption: 18W(max.)
    • Operation Temperature: 0~40℃


    • Dimension: 44(H) X 483(W) X 240(D)
    • Weight: 2.0 kg
