Lumantek VS10 ez-Pro 10x1 Video Switcher
Lumantek VS10 ez-Pro 10x1 Video Switcher
_x000D_More Switcher for Everyone!
_x000D_Again, LUMANTEK gives you another switcher good for live events but with more ports than before. More screens to monitor in a single switcher with a larger touch screen to control.
_x000D_Customizable video switcher for your preference. You can choose from many layouts to show the multiview screen. You can move them as you want and name as you want. Configure your own layout through our utility (Win OS or Mac OS), save it on a USB disk, and plug it into VS10 to load your layout.
_x000D_Perfect harmony with ez-CGER mini for live titling and graphics! All ez-Pro VS10 SDI inputs can take in Fill & Key signals. Connect LUMANTEK’s “ez-CGER mini†with ez-Pro VS10 and broadcast your video with Live Titling and Graphics!
_x000D_Intuitive LCD Touchscreen and Joy-stick control All key menu or functions can be adjusted with touchscreen smoothly and extremely easily operated with rotary switch or Joy stick.
_x000D_All 10 inputs built in Scaler
_x000D_ez-Pro VS10 comes with internal scalers in all input ports. Adjust freely using our touch screen menu.
_x000D_Twice the Basic Features
_x000D_ez-Pro VS10 has 2 Picture in Picture (PIP) capabilities, 2 Still Image which covers the whole screen, and Luma and Chroma Keyer. You can mix both features and key out the PIP and assimilate a hand language translator PIP.
_x000D_Quiet Fan for your comfort
_x000D_LUMANTEK carefully calibrated the fan noise to provide more comfort to its users while enabling the switcher to operate at its maximum performance.
_x000D_Any ports are Fill & Key
_x000D_VS10 allows to set any SDI input ports as Fill or Key.
_x000D_Transfer with USB disk
_x000D_It is easy to transfer your settings to VS10. Use the VS10 Utility software to save settings into your USB disk. Then plug the USB into VS10 to transfer settings, media, and new firmware.
_x000D_MULTI-VIEW & PROGRAM OUTPUT at LCD screen
_x000D_LCD screen is able to display Program and Multiview when you touch the screen.
_x000D_- _x000D_
- 10-Input, 1-Channel HD Video _x000D_
- Mix & Match 3G/HD/SD-SDI & HDMI Sources _x000D_
- Supports up to 1080p60 Resolutions _x000D_
- Multiview/Program Outputs Through HDMI _x000D_

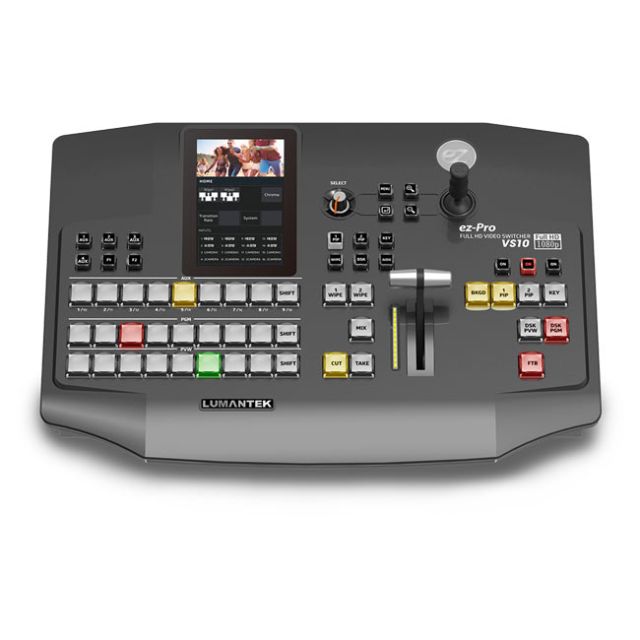

The standalone 10 x 1 ez-Pro VS10 3G-SDI/HDMI Video Switcher from Lumantek is designed for live events. Integrated scaling enables you to mix and match up to ten SD, HD, 3G-SDI, and HDMI signals. All key menu functions can be adjusted with the integrated TFT-LCD touchscreen and operated with the rotary switch or joystick. The 5" screen displays program and multiview. Features of the ez-Pro VS10 include two PiP (picture-in-picture) functions and chroma/luma keying.
_x000D_Use the console buttons and T-bar to switch, cut, mix, wipe, and transition between sources. The ez-Pro VS10 switcher supports video resolutions up to Full HD 1080p60. A USB 2.0 port is provided for transferring settings, media, and new firmware. Other ports include two 3-pin XLR analog audio inputs and outputs, a remote port for control, and an Ethernet port.
_x000D_Mix and match 3G/HD/SD-SDI and HDMI sources
_x000D_- _x000D_
- Supports up to 1080p60 HD video _x000D_
- Multiview and program outputs via HDMI _x000D_
- Internal scaler in all ten inputs _x000D_
- LCD 5" touchscreen _x000D_
- Two PiP function buttons _x000D_
- Luma and chroma functions _x000D_
- SDI ports can be set as fill or key _x000D_
- Diverse transition effects _x000D_
- USB 2.0 port for transferring settings, media, and new firmware _x000D_
- Quiet fan _x000D_
Again, LUMANTEK gives you another switcher good for live events but with more ports than before. More screens to monitor in a single switcher with a larger touch screen to control. You can choose from many layouts to show the multiview screen.
_x000D_You can move them as you want and name as you want. Configure your own layout through our utility (Win OS or Mac OS), save it on a USB disk, and plug it into VS10 to load your layout.
_x000D_Assign video sources to console buttons of your preference.
_x000D_Choose different multiview layouts and assign sources as you want!
_x000D_All ez-Pro VS10 SDI inputs can take in Fill & Key signals. Connect LUMANTEK’s “ez-CGER mini†with ez-Pro VS10 and broadcast your video with Live Titling and Graphics!
_x000D_All key menu or functions can be adjusted with touchscreen smoothly and extremely easily operated with
rotary switch or Joy stick.
ez-Pro VS10 comes with internal scalers in all input ports.
_x000D_Adjust freely using our touch screen menu.
_x000D_ez-Pro VS10 has 2 Picture in Picture (PIP) capabilities, 2 Still Image which covers the whole screen, and Luma and Chroma Keyer. You can mix both features and key out the PIP and assimilate a hand language translator PIP.
_x000D_LUMANTEK carefully calibrated the fan noise to provide more comfort to its users while enabling the switcher to operate at its maximum performance. VS10 allows to set any SDI & HDMI input ports as Fill or Key.
_x000D_It is easy to transfer your settings to VS10. Use the VS10 Utility software to save settings into your USB disk. Then plug the USB into VS10 to transfer settings, media, and new firmware.
_x000D_LCD screen is able to display Program and Multiview when you touch the screen.
_x000D_ez-Pro VS10
Input Ports
Video:
8 x SDI
2 x HDMI
Audio:
_x000D_1 pair x XLR
_x000D_ez-Pro VS10
Output Ports
Video:
4 x SDI (AUX 1~4)
2 x SDI (Program)
1 x HDMI (Program)
1 x HDMI (Multiview)
Audio:
_x000D_1 pair x XLR
