MARBL. Orbit Overhead Camera Dolly Pro Kit


MARBL. Orbit Overhead Camera Dolly Pro Kit

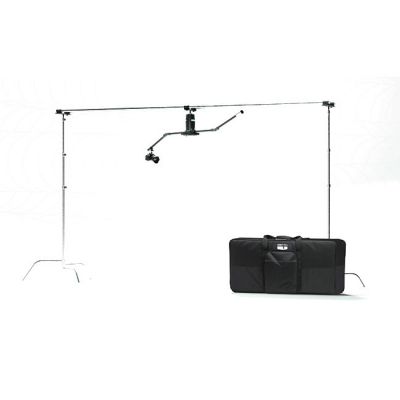

Capture smooth orbiting video by yourself without having to set up dolly tracks or complex rigs. The Orbit Pro camera dolly system from MARBL mounts to your ceiling, speed rails or scaffolding in under 30 minutes and can hold cameras up to 10lbs. The pro kit bundles in extra accessories such as a travel bag, speed rail adaptors, camera mounts,  extra counter weights, and cables which allow you to set Orbit up anywhere, even outdoors. It features a rechargeable precision motor with hundreds of speed settings that allow you to fine tune your Orbiting camera shots. Use the handheld remote or the Wi-Fi based app to run product, interview, time lapse and stop motion modes. An included telescoping downrod can be attached for shots where you need to bring the whole assembly lower for table height videos.  Adjustable arms feature premium Kondor Blue built joints that allow for multiple length arm configurations. The included battery powered light ring mounts to Orbit and provides high quality lighting that won’t be impeded by the moving parts of the rig. Also included with the light ring is a magnetic moon ball that can help you find proper focus to film yourself and a crosshair laser that helps you find perfect center. Get ready to take your interviews, product videos, scenes, and content to the next level with Orbit.

Key features

  • Supports up a 10 Lb camera ( extra counterweights required)
  • Minimum overhead space required to operate is 8ft
  • Speed adjustable up to 10 RPM Slowest 1 Rotation per 48 Hrs
  • Remote controlled ( IR or Wi-Fi App)
  • Adjustable Modes: product, interview, time lapse, and stop motion
  • Speed rail adaptable for high ceiling scenarios and outdoor use
  • Multi arm length configurations with articulating joints
  • Motor mountable light ring with subject centering aids (Laser Diode, self-focus moonball tool)
  • 6 ( 1lb) counterweights included
  • Padded travel case

Note: This kit requires purchase of light stands, and 1-1/4” speed rail, sold separately. We do not sell light stands or speed rail, but have recommendations on our Third Party gear Page.


Base Kit Included

(1) Axibo Powered Stealth Motor.

  • Internal 6700mAh battery.
  • 8 hour run time.
  • Max 10 RPM / Min 1 Rotation per 48 hours.
  • Machined and welded motor shaft, vertical weight tested over 200 lbs.

(1) Ceiling Plate with hardware assembly. Mounts into Studs/ joists, or cement ceilings. Includes screws.

(1) Telescoping Down Rod. Attaches to ceiling Plate and to Orbit Motor with an adjustable hight of 27” - 46” . Ideal use for ceilings 8-12’

(2) Kondor Blue Arm joints. Anodized 6160-t6 aluminum, with arri rosette steel teeth.

(4) Anodized Black aluminum arm poles. (2) 24” and (2) 16 inch. Total span across when assembled 94”.

(2) Threaded end caps with 1/4-20 mounting for accessories or counter weights. Caps thread into arm poles.

(1) Dual Arm receiver. Includes bubble level for proper weight distribution.

(3) 1 lbs counter weights. 1/4-20 threaded, stainless steel construction.

(1) Ball Head to cold Shoe mount. Fits to normal DSLR or Mirrorless cameras such as Sony, Canon, Panasonic.

(1) 1/4-20 to Cold Shoe Mount. Mounts to any camera with 1/4-20 mount, and creates a quick release cold shoe.

(1) Bar Sleeve. 1/4-20 mount, attaches to ball head and camera.

(2) Hook and loop wall anchors for leveling down rod.

(2) 1/4-20 threaded loops. Used for attaching ratchet straps and straightening down rod, (if needed).

(2) Ratchet straps. 75 LBS max payload.

(1) Aluminum IR Remote control + APP (App release summer 2022)


Studio Kit Included


(1) Studio Ring Light

-5600k Daylight LEDS.

-Diffused and dimmable, CRI 97+ LEDS. Good on products and Skintones.

- Laser guide for finding perfect center of orbit.

-Internal 6700 mAh battery bank. USB-C quick charge or reverse charge to use as battery bank.

-7 hour battery life @ 50%v brightness. 3.5 hour battery life @ 50% brightness.

- 32 Step encoder for brightness, 5 step remote brightness.

-Tool holder + Magnetic remote holder

(1) Magnetic Focus Ball. Pull focus for yourself or use to set exposure with near 18% grey moon ball.



Pro Kit Included

(1) Pro Bag. Durable, travel safe padded bag.

(3) Outdoor brackets for Speedrail. Attaches to Light stand and USA schedule 40 1-1/4'“ Speedrail with OD 1.66. *

(3) 1 lbs counter weights. Additional weights, bringing a total kit counter weight to 6 lbs.

(1) Dual ball head to 1/4-20 thread. Attaches to

(1) Dual collar sleeve. Slide on the bar and attach additional camera, accessories, or counter weights.

(2) Hook and loop wall anchors for leveling down rod.

(2) 1/4-20 threaded loops. Used for attaching ratchet straps and straightening down rod, (if needed).

(2) Ratchet straps. 75 LBS max payload.

(1) V-mount Bar clamp and quick release. Attach a v-mount battery as a counter weight or to charge Orbit Motor or Light Ring.

(1) 10ft D-tap to D-tap Extension cable. Run the battery cable from one side to the other, using the battery as counter weight. *

(1) D-tap to 12V power cable. Charge to Orbit Motor or Light Ring while you shoot, with this cable. *

(2) Velcro lens straps to support longer lenses.

(1) Light Ring Case


Motor Modes Explained

Product Mode, visor Green. Max speed, 10RPM. Very fast Orbits, great for slow motion shots.

Interview mode, visor yellow. Slower than green mode, 1/10 RPM, ideal for interviews or for slow product shots with long lenses.

Time lapse mode, visor teal. Very slow gear, 1 rotation every 48 hours, great for shadows play time lapse or plants growing etc..

Stop Motion Mode, visor blue. Orbit only moves when given instructions to do so, moves in degrees.

Wiper Mode, visor blinks any color - Orbit jogs back and forth between two positions. Ideal for interviews with long lenses and low speeds.

VFX Mode. Orbit has built in speaker, and will beep exactly as each orbit concludes. Ideal for stacking and performing movie magic.

V-mount batteries are NOT included in any package. Orbit base, Studio, and Pro may require installation into a ceiling stud. For best results, use a stud finder and screw gun. These are NOT included as well. Outdoor mounting requires appropriately sized overhead stand, a dual speed rail assembly, and additional safety equipment, which are NOT included.
