Meike Cinema Full Frame Cinema Prime 16mm T2.5 RF Lens - Final Sale, No cancellations, No returns

by Meike Cinema MFG# MK-FF16T25-RF
$1,199.00

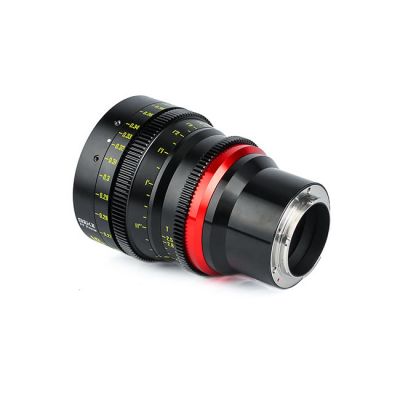

Meike Cinema Full Frame Cinema Prime 16mm T2.5 RF Lens

This is Meike’s Sixth FF cine lens and it now joins the FF cine lens family.  It covers an image circle of 45mm. It is available in either PL, Canon EF, Canon RF, Sony E, and Panasonic L mounts.

The complete set includes
16mmT2.5,24mm,35mm,50mm,85mm,105mmT2.1,135mmT2.4.

It has industry-standard 0.8mm pitch gears on the focus and aperture ring.The lens design of the Meike 16mm T2.5 FF-Prime consists of sixteen elements in eleven groups.The aperture mechanism consists of 11 aperture blades. The minimum focus distance is 30cm.



Compatible:

  • Canon C700 C500II
  • Sony VENICE
  • Alexa LF
  • Z Cam E2-F6
  • Mavo LF
  • Sony FX3 FX6,FX9
  • All full-frame Sony, Panasonic. Canon, Sigma, Leica mirrorless Cameras
  • All Super 35/ APS-C sensors Cameras



Specifications

Lens Mount:

PL/EF/RF/E/L

Min Focal Dist:

30cm

Filter Thread:

ø86

Outer Diameter:

90mm

Image Circle:

45mm

Structure:

16 Elements in 11 Groups

Focal Length:

16mm

Aperture Range:

T2.5-T22

Iris Blades:

11

Gear Mod:

M0.8

Focus Rotation:

330 Degree

Dimensions (Ø x L): PL:

ø89.6 × 101.9

EF(Canon):

ø89.6 × 110

RF(Canon):

ø89.6 × 133.9

E(Sony):

ø89.6 × 135.9

L(Panasonic):

ø89.6 × 133.9





Weight:

1111~1185g



FOV:



on FF cameras:

on APS-C camera:

Diagonal:107.3°                                     Horizontal: 96°

Vertical: 72.2°

Diagonal:81.5°                                      Horizontal: 70.8°

Vertical: 50.4°
