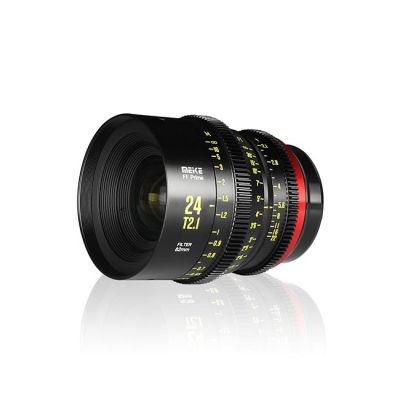

Meike Cinema Full Frame Cinema Prime 24mm T2.1 PL Lens - Final Sale, No cancellations, No returns
Meike Cinema Full Frame Cinema Prime 24mm T2.1 PL Lens - Final Sale, No cancellations, No returns
This is Meike’s fourth full-frame cine lens and it now joins the Full Frame cine lens family.  It covers an image circle of 45mm. It is available in either PL, Canon EF, Canon RF, Sony E, and Panasonic L mounts.
The complete set includes
16mm T2.5, 24mm T2.1, 35mm T2.1, 50mm T2.1, 85mm T2.1, 105mm T2.1, 135mm T2.4.
It has industry-standard 0.8mm pitch gears on the focus and aperture ring.The lens design of the Meike 24mm T2.1 FF-Prime consists of fourteen elements in nine groups.The aperture mechanism consists of 11 aperture blades. The minimum focus distance is 30mm.Â
Compatible:
- Canon C700Â C500II
- Sony VENICE
- Alexa LF
- Z Cam E2-F6
- Mavo LF
- Sony FX3 FX6,FX9
- All full-frame Sony, Panasonic. Canon, Sigma, Leica mirrorless
- All Super 35/ APS-C sensors
Specifications
|
Lens Mount: |
PL/EF/RF/E/L |
|
Min Focal Dist: |
30cm |
|
Filter Thread: |
ø82 |
|
Image Circle: |
45mm |
|
Structure: |
14 Elements in 9 Groups |
|
Focal Length: |
24mm |
|
Aperture Range: |
T2.1-T22 |
|
Iris Blades: |
11 |
|
Gear Mod: |
M0.8 |
|
Focus Rotation: |
330 Degree |
|
Dimensions (Ø x L): PL: |
ø89.6 × 101.9 |
|
EF(Canon): |
ø89.6 × 110 |
|
RF(Canon): |
ø89.6 × 133.9 |
|
E(Sony): |
ø89.6 × 135.9 |
|
L(Panasonic): |
ø89.6 × 133.9 |
|
Z(Nikon): |
ø89.6 × 137.9 |
|
Weight: |
1111~1185g |
Â
|
FOV: |
Â
|
on FF cameras: |
on APS-C camera： |
|
Diagonal:83.4°           Horizontal: 72.6°                       Vertical: 52° |
Diagonal:60.1°             Horizontal:51.3°                       Vertical: 35.1° |
Â
