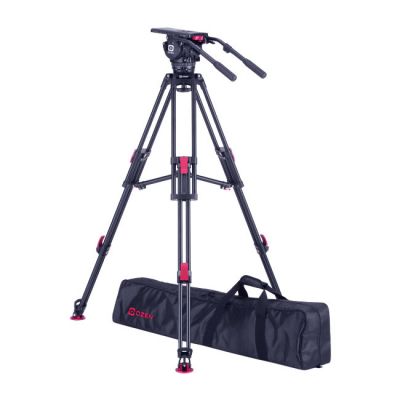

OZEN 20AL2HD 100mm AGILE 20 E-Z LOAD Tripod System


OZEN 20AL2HD 100mm AGILE 20 E-Z LOAD Tripod System


(16) increments of adjustable & repeatable counterbalance for fast set-up typical of ENG/EFP-type use. CNC-machined selector-dial mechanism facilitates crisp, repeatable increment-selection.

AGILE 20/20S enables the operator to quickly alternate between multiple camcorder-configurations of payloads between 4-28kg (8.8-61.6lbs).

Fluid Drag

AGILE 20/20S features a 9/9 + 0 fluid drag mechanism, which is incrementally adjustable and repeatable.  The smooth, uniform fluid drag neither deviates nor deteriorates over time and usage. â€‹

The tremendous amount of fluid drag available at higher increments enables an experienced operator to acquire full-zoom pan/tilt-intensive images that are indistinguishable from those acquired in-close.

Camera Mounting Interface

E-Z LOAD, compatible with the spring-loaded, capture-type camera mounting interface, facilitates fast set-up conducive to 'shoot & scoot' ENG-type use.

 Ergonomics and Compatibility

Experienced operators will appreciate:

-- the familiar ergonomics of incremental pan/tilt fluid drag & counterbalance controls,

-- distinguishable 90 degree-opposed pan & tilt brakes,

-- replaceable pan bar rosettes for longer fluid head usability,

-- an illuminated bubble-level and spare camera plate screws,

-- and many other use-friendly features.

They're all located where experienced operators expect, and operate likewise, precluding need to re-train 'muscle-memory'.


Weight: 5.98KG (13.1lbs)

Counterbalanced Payload: 4-28kg (8.8-61.6 lbs)

Counterbalance Increments: 16

Pan/tilt Fluid Drag Increments: 9/9+0

Tilt Range: +90°/-80°

Mounting Base: 100 mm

Operating Temperature: -40/+60 °C

Bubble Level: Illuminated

Pan bar: (2) telescopic pan bar included



100mm 2-stage heavy duty aluminum tripod for heavy payload/high fluid drag applications

  • 99 lbs (45kg) payload capacity.​
  • 22mm-diameter heavy duty aluminum tubes are pinned to their joints - not glued.​​
  • CONTENDER heavy-duty 2-position (flat & angled) mid-level spreader – INCLUDED AT NOT EXTRA COST.​
  • Deep-tread rubber feet for better traction on smooth surfaces – INCLUDED AT NOT EXTRA COST.​​
  • Conspicuous red flip-type brake levers for fast deployment & stowage.​
  • Features unique brake adjustment mechanism​
  • Heavy-duty 2-position (flat & angled) mid-level spreader (CONTENDER) – INCLUDED​
  • Deep tread rubber feet for better traction on smooth surfaces – INCLUDED​
  • 10.9 lbs. / 4.98kg. carry-weight​
  • 22” - 57” / 57 – 154 cm height range
