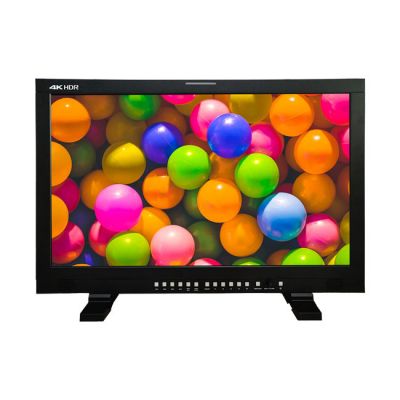

RGBlink 27'' UHD IPS Monitor
RGBlink 27'' UHD IPS Monitor
27inch 4K HDR monitor, 3840 x 2160 16:9 aspect ratio, 800nits, 92% DCI-P3 wide colorgamut, custom 3D LUT import, designed for professional production and post production workflow.
Offers the precise color reproduction and the unique and advanced features. The ZVM-U270 also
supports various HDR gamma curves, such as PQ, HLG, S-Log3
27 inch 4K IPS LCD Panel
4K UHD(3840 x 2160) resolution, 800nits high brightness, 10bits LCD IPS panel, 178º/178º viewing angle
Wide Color Gamut
Covers 92% DCI-P3 color gamut, 22% larger than Rec.709
4K Signal Input Interface
4 channels 12G-SDI video input and loop output, HDMI2.0 input, Thunderbolt/Type-C interface and SFP
Multi Screen
Support multi screen modes, PBP/PAP, 3 screen and quad, monitor multiple signals at the same time
Multiple Gamut Formats
ITU-R BT.2020, ITU-R BT.709, EBU, SMPTE-C, DCI-P3, Native
Support HDR/Gamma(EOTF)
HLG (Hybrid Log Gamma)(1.0, 1.1, 1.2, 1.3, 1.4, 1.5) and ST.2084 Dolby Vision PQ HDR Support Sony S-log3 HDR Support normal Gamma and user Gamma LUT
SDR/HDR Comparison
Select multi screen mode to compare the signals effect of SDR and HDR
Camera Log
Support Sony, ARRI, Canon, Panasonic and DJI Camera Log and user Log
3D LUT Color Calibration
3D Look-up Table import is supported for accurate and consistent color matching between individual displays
Embedded Audio Meter
Support 16 channels of embedded audio meters, support audio abnormal alarm, select 2 channels of audio meter output
Support waveform, vector, histogram
Select Y, CB, Cr, R, G, B waveform, support any single line waveform, support vector graph and R/G/B/Y full channel histogram display
USB firmware upgrade
Gamut Warning
Headphone
Stereo Mini Jack x1
False Color
Over scan, Marker, Mono, Blue only
