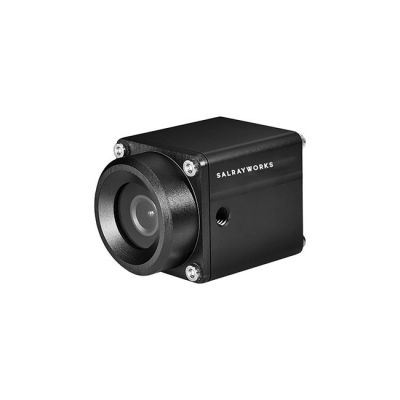

Salrayworks VWFS 1/2.8'' Exmor R CMOS POV Camera

by Salrayworks MFG# SRW-VWFS

Salrayworks VWFS 1/2.8'' Exmor R CMOS POV Camera

1/2.8"  Exmor R CMOS  new SONY IMX327 sensor Weather-proof ( IP67 ), 1/2.8" Exmor R CMOS sensor, 3G-SDI, CVBS outputs, Audio in, IR remote, RS-422 control ( SDI :1920x1080p59.94, 1920x1080i59.94, 1920x1080p29.97, 1280x720p59.94, 1280x720p29.97

1920x1080p50/60, 1920x1080i50/60, 1920x1080p25/30, 1280x720p50/60, 1280x720p25/30 )

  • Resolution 1920×1080 60p/59.94p
  • Lens 4.3mm
  • Output 3G-SDI,CVBS
  • Protocol / Communication VISCA, PELCO-D/P, RS-422/485
  • Multi-input Audio/IR remote
  • Dimension 43 x 43 x 60 mm (WxHxD)
  • Patented Camera OSD
  • Weather proof IP 67

Full HD image quality with 60fps frame rate

1920×1080 60p/59.94p

See every presenter or conference participant more clearly. The 1/2.8-type Exmor R CMOS image sensor captures smooth, crisply detailed, Full HD (1920 x 1080 60p/59.94p) images with extremely low noise – even in low light conditions where other cameras struggle. High frame rate (60/59.94fps) operation ensures smoother, more fluid reproduction of moving subjects.

Applicable with various lens 4.3mm

We provide a default lens that has an angle of view of 120°/80°. However, in case any other type of lens is required, it can be supported(other lens should be additionally purchased).

Multi-format output video


The SRW-VWFH can simultaneously output 1080/60 or 59.94p baseband video through 3G-SDI. Also, it supports CVBS so that our customers can easily set up with it. This capability makes the camera ideal for simultaneous recording of conferences, lectures, seminars and other live events.

Versatile connectivity options

VISCA, PELCO-D/P, RS-422/485

Support for RS-422 and 485 communication allows easy connection with a wide range of peripheral products. The camera can also be controlled via VISCA, PELCO-D/P protocols.

Protection from water, dust, dirt and sand

IP 67

Weatherproof IP67 rated Housing for outdoor applications. Water protection submerged up to 1m (3.2′) – total protection against dust, dirt, sand
