SGC Lights Magnet Mount Adapter

by SGC Lights MFG# SGC-NS1004MMA1

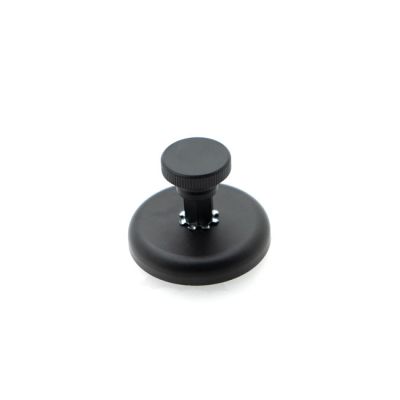

SGC Lights Magnet Mount Adapter

The Magnet Mount Adapter is used to turn your SGC Mount into an easy to place and use grip tool. It directly attaches the high quality magnet to the back of the tube's mounting clip so that it can be used with ease.

Super Strong Neodymium Cup Magnets Diameter 1.65"  w/ #M6 Bolt and 3/8 thread adapter. Made of Neodymium Magnets - Great Round Base Mounting Magnets Super Powerful. Can hold up to 40 Pounds of weight.

This high strength cup magnet is made of a neodymium magnet encased inside a chrome plated steel cup. This design greatly increases the holding power of the magnet, as well as protects the magnet from shattering or damage from everyday use, allowing it to last much longer than a plain magnet. This magnet holds up to 40 lbs when held against steel surfaces when the magnet has direct contact with a smooth plain steel surface. The magnet came with standard #M16 screw to ensure mounting to other accessories. This magnet measures 1.65” in diameter and is .27” thick.

SGC earth magnets are made of high quality neodymium magnetic material, which makes them up to 12 times stronger than ceramic magnets of the same size. This magnet can hold up to 40 lbs under ideal conditions, and is a neodymium magnet which due to its large size is extremely strong. They are magnetized through the 1/2" thickness so the north and south poles are on the flat surfaces, and the red line on one side of the magnet denotes which side the north pole is on

These rare earth neodymium Cup magnets are made for holding stuff & that is what they do best. Neodymium magnets are unique because of their extreme resistance to demagnetization and will only lose their magnetism if they're heated above 176 degrees Fahrenheit.


- Magnets Provides 40 Pounds Of Holding Power
- Maximum Working Temperature 176 F (80 C)
- Material: Sintered Ndfeb Neodymium
- Rating: 14,800 Gauss Pulling Force
- Pole Orientation: Axially Magnetized, The Poles Are On The 1/2" Thickness
- Coating: ni+Cu+Ni 3 Layer Plated
- Tolerance: All The Dimensions Are +/-0.002in With Coating
- These are not the magnets you played with as children 10-20 times the force of those old time magnets.
