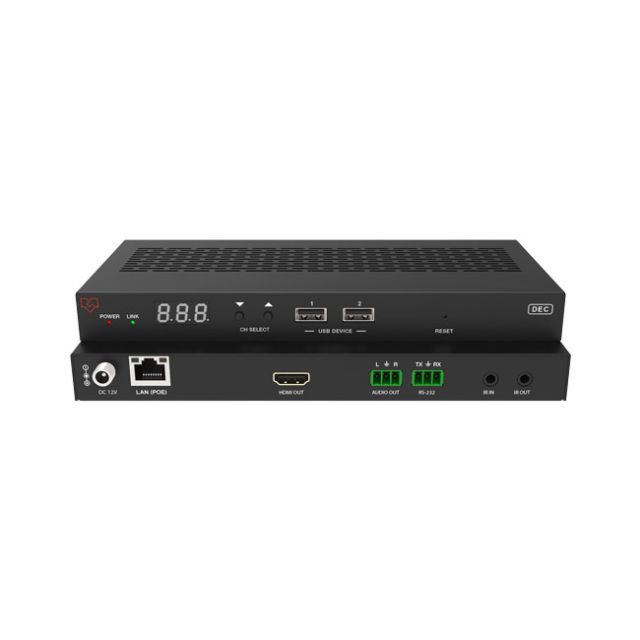

Vigillink 1G H.265 1080P@60Hz Avoip ReCEiver With Videowall Processing (Kvm, IR)
Vigillink 1G H.265 1080P@60Hz Avoip ReCEiver With Videowall Processing (Kvm, IR) This Av Over IP Product Distributes Multiple HD Contents To Multiple HD Display Devices Over A 100M/1G Network Switch. It Offers Configurable High-Quality Low-Bandwidth H.265/H.264 Configurable Compression Video And Supports Resolution Up To 1920X1200@60Hz 4:4:4. Signal Transmission Distance Can Be Extended Up To 328Ft/100M Via Cat5E/6/6A/7 Cable. The Encoder Supports HDMI Local Loop Output. The Product Supports Analog Audio Embedding And Extracting. It Also Supports USB/Kvm Function, Bidirectional IR/Rs-232 Control (Pass-Through & Guest Mode), And Single-Machine Control (Without A Controler Box, Matrix Switching Can Be Realized With Panel Buttons, Local IR, Or Rs-232 Control). Featured Highlights HDMI 1.4 And HDcp 1.4 ComPLiant Video Resolution Up To 1920X1200@60Hz 4:4:4 Supports 4.95Gbps Video Bandwidth Signal Transmission Distance Can Be Extended Up To 328Ft / 100M Via Cate/6/6A/7 Cable Supports Point-To-Point Signal Extension Supports Signal Distribution, MUlticast Mode, Distributed Matrix, And Video Wall (Up To 9 X 9) Functions Over A 1G Network Switch Mode) Intelligent Video Wall Class Management Makes It achievable For Wall-In-Wall Or Novel Layout Of Wall Configurations Support Lpcm 2.0Ch (32/44.1/48Khz) Audio Format The Encoder Supports HDMI Local Loop Output Supports Audio Embedding And Extracting Supports USB/Kvm Function (One To One & One Too Many), And Bidirectional IR/Rs-232 Control (Pass-Through & Guest Support Mainstream And Substream Encoding Modes Stream Parameters Can Be Set Via Api Comm ands Controled Via Panel Buttons, IR, Rs-232, Tcp/Ip, Web Gui And Controler Box Supports Poe Function (802.3Af Class 3, Pd Mode) Smart Networking Design For Easy And Flexible Installation Package Contents 1X 2K60 Over IP 100M/1Gbe Decoder 2X 3-Pin Phoenix Connector (3.81mm , Male) 1X IR Blaster Cable (1.5 Meters) 1X IR ReCEiver Cable (1.5 Meters) 4X Machine Screw (Km3, 4mm ) 2X Mounting Ear 1X 12V/1A Locking Power Adapter 1X User Manual
