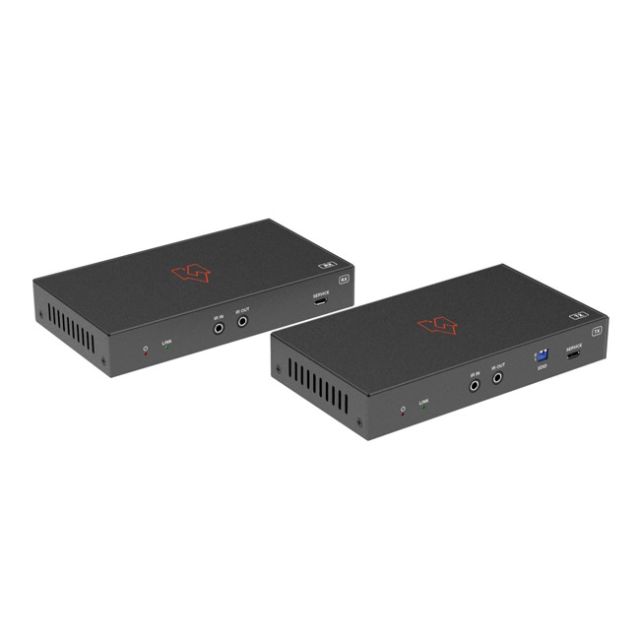

Vigillink HDbaset 3.0 4K@60Hz 4:4:4 HDMI 2.0 Extender (40M, USB-Vs300R)
Vigillink HDbaset 3.0 4K@60Hz 4:4:4 HDMI 2.0 Extender (40M, USB-Vs300R) Introducing The 18Gbps HDbaset 3.0 Extender, Engineered To EFfortlessly Extend Uncompressed HDMI/USB-C Signals, Bi-DIRectional IR, Rs-232, And USB 2.0 Signals across Distances Of Up To 230Ft/70M (4K30/1080P) Or 131Ft/40M (4K60) With Just A Single Cat6A/7 Cable. With Support For Video Resolutions Up To 4K2K@60Hz Yuv 4:4:4, This Extender Ensures Crystal-Clear Visuals. The Transmitter Boasts 1X HDMI Input, 1X USB-C Input (60W Charging), 1X USB Host, And 3X USB Device Ports, While The ReCEiver Features 1X HDMI Output And 2X USB Device Ports. Both Units Support 3.5mm Analog Audio De-Embedding, Edid Management, Bi-DIRectional IR, And Rs-232 Signal Pass-Through. Plus, Enjoy The ConvenienCE Of A Bi-DIRectional 24V Poc Function. Ideal For Home And Comm ercial Settings, This Extender Offers Seamless Integration And Long-Distance Capability, Delivering A Hassle-Free Solution For Video Extension Via A Single Cat Cable. Featured Highlights ComPLiant With HDMI 2.0B And HDcp 2.3, 18Gbps Video Bandwidth HDbaset 3.0 Vs300R Chipset Based Design Supports Video Resolution Up To 4K2K@60Hz (Yuv 4:4:4) Uncompressed Video Signal Transmission Distance Can Be Extended Up To 230Ft/70M For 4K@30Hz, Or 131Ft/40M For 4K@60Hz Over A Single Cat6A/7 Cable Tx Features With 1X HDMI Input, 1X USB-C Input, 1X HDbt Output, 1X USB 2.0 Host And 3X USB 2.0 Clients Rx Features With 1X HDMI Output, 2X USB 2.0 Clients USB-C And HDMI Signal Inputs Support Auto Or Manual Switching Mode Auto Switching Supports HDMI 5V Or Signal Detection Selection USB-C Supports Dp-Alt Mode For A/V, USB 2.0 Data, And Power Charging Up To 60 Watts Tx/Rx USB-A Client Ports Vbus On Or Off DepeNDIng On USB Host Is Connected Or Not HDR, HDR10, HDR10+, Dolby Vision Llm And Hlg Pass-Through 4K To 1080P Downscaling Features On HDMI Output, No Frame Rate Conversion Both Tx And Rx Support Analog Audio De-Embedding Rs-232 Signal Pass-Through And Guest-Mode Control Supports Bi-DIRectional IR Signal Pass-Through, USB 2.0 Signal Transmission Advanced Edid Management Each USB-A Port Provides Power Up To 5V/500Ma Supports Bi-DIRectional 24V Poc, With Poc Switch Compact Design For Easy And Flexible Installation Package Contents 1¬€� HDbaset 3.0 Extender (Transmitter) 1¬€� HDbaset 3.0 Extender (ReCEiver) 1¬€� IR Blaster Cable (1.5 Meters) 1¬€� IR ReCEiver Cable (1.5 Meters) 2¬€� 3Pin-3.81mm Phoenix Connectors (Male) 4¬€� Mounting Ears 8¬€� Machine Screws (Km3*4) 1¬€� 24V/1A Locking Power Adapter 1¬€� User Manual
